ASTEC TrueChrome

Experience True Color with the Powerful HDMI Microscope Camera

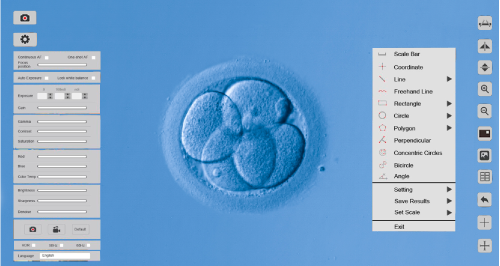

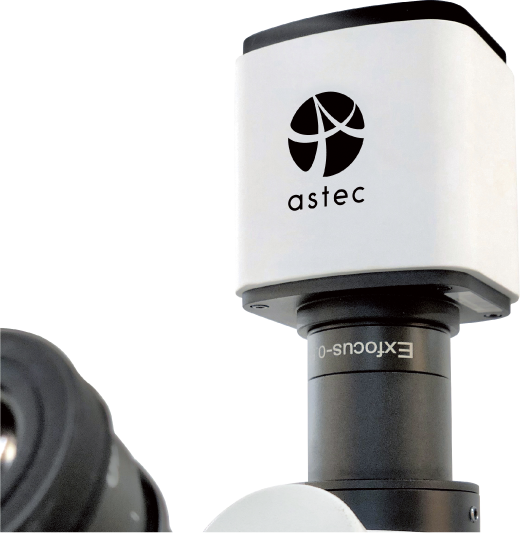

ASTEC TrueChrome AF is an unprecedented high-speed focusing camera that provides sharp and clear image on your monitor without complexity. The PC-less mouse control software is already installed in the camera, and it is immediately ready to use by simple plug in. This built-in software offers both continuous and single-shot autofocus modes, and it also supports mouse wheel control fine-tuning. Data transfer up to 60 frames per second enables to get clear images with ease. Moreover, this software offers various image parameter adjustments, and users can easily match the monitor image to the eyepiece view.

You can capture images and record movies through the software. All image data is stored in a SD card and users can compare the saved images to the real-time screen.

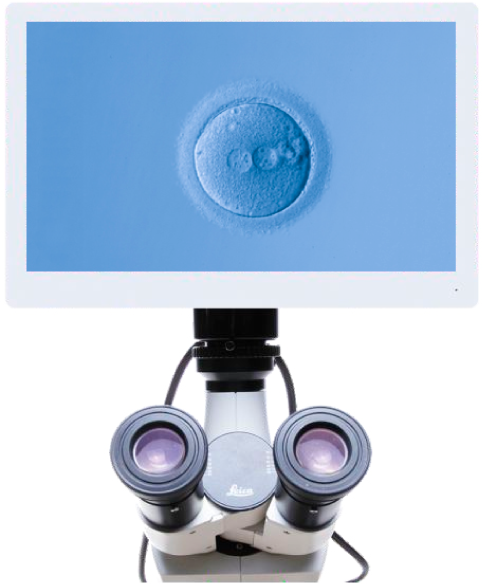

Tailored 1080P HD Retina screen is available as an optional accessory. This screen can be mounted onto the camera to maximize space efficiency.

Specifications

ASTEC TrueChrome

TrueChrome AF

Sensor CMOS
Sensor Size 1/2.8”
Dynamic Resolution 2MP, 1920 x 1080
Static Resolution 6MP, 3264 x 1836
Frame Rate 60fps @ HDMI
30fps @ USB2.0
Video Recording 30fps @ PC
30fps @ SD Card
Exposure Mode Auto/Manual
Exposure Time 0.001s – 10s
Output Interface HDMI, USB2.0, SD Card
Setting Gamma, Gain, WDR, Noise Reduction
White Balance Auto/Manual
Optical Port Standard C-Mount
Size 90.7 x 78 x 70.8 (mm)

Retina Screen

Resolution 1080P (1920 x 1080)
Display Type IPS-Pro
Screen Size 11.6”
Aspect Ratio 16:9
Brightness 320cd/m2
Static Contrast Ratio 1000:01:00
HDMI Port 1
Power Supply Type 12V, 2A
Size 282 x 180.5 x 15.3 (mm)
Weight 600 (g)
