EC-9

Smaller, safer and just right

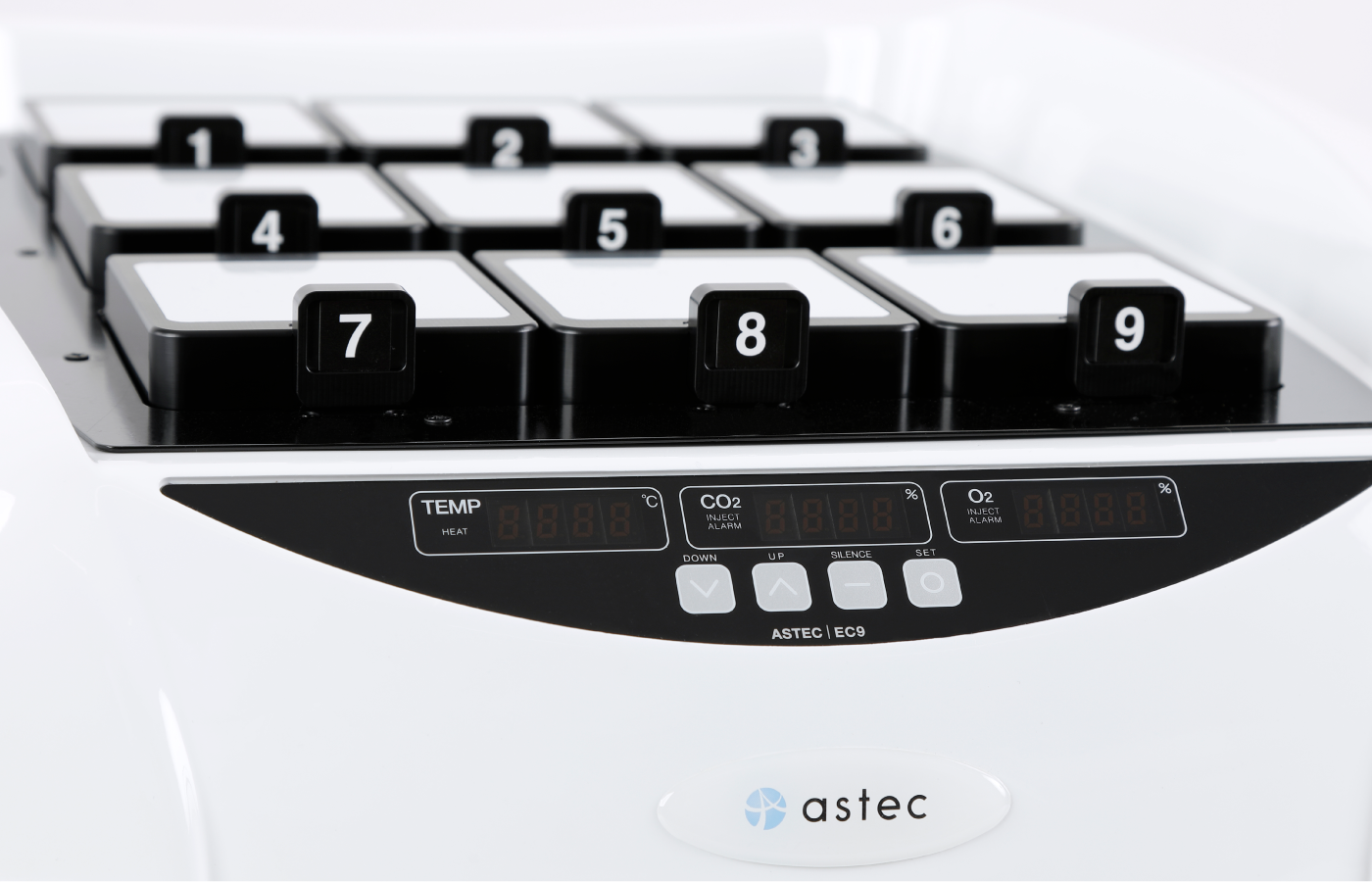

Astec-Bio, proudly introduces the EC-9 next generation incubator to the global market. Engineered and developed with a compact body made of Fiber Reinforced Plastic (FRP) that houses (9) personal incubation spaces. With distinct temperature control and gas supply for each chamber the EC-9 offers outstanding flexibility & convenience for its operator. It is smaller, safer and more personalized than any other incubator available in the market today. The EC-9 has revolutionized incubation for the next generation.

See below to find out more

Distinct Culture

Each chambers temperature (heated from Top & Bottom) are independently adjustable. Heated Lid prevents condensation and enhances temperature regulation and quick recovery. Pre-Heated Gas mixture is supplied independently to each chamber using our newly developed gas feeding aluminum modules. (The Gas tank is mounted seamlessly with CO2 and O2 sensors under the unit.) The EC-9 allows operators to access their cultures in the desired chamber without disturbing the adjacent chambers thus the harmful effects of fluctuations in temperature and gas caused by everyday incubator access are avoided. A Multi-featured incubator created with you in mind!

Along with outstanding stability, the small 100cm³ incubation chamber gives EC-9 the ability to recover the temperature and gas level faster than any other incubator available in the market today.

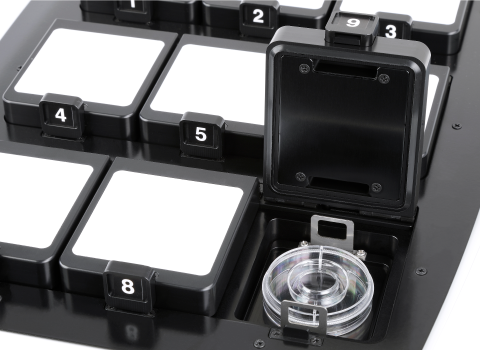

Effectively laid out nine small chambers are optimally designed for one or two 35mm dish to be placed in each chamber. The new gas feeding system provides “personal incubation” where an opening of one chamber has no direct stress to the other unopened chambers. Temperature control is also independent to each chamber with the accuracy of ±0.1℃.

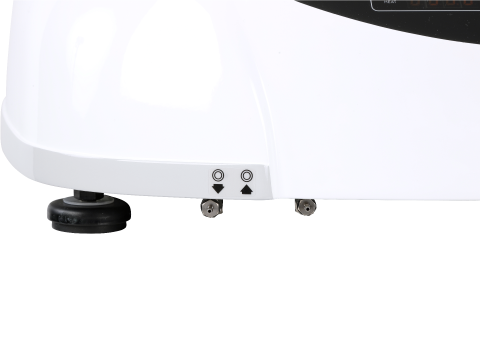

The EC-9 is equipped with an easy access and convenient sampling ports located in the front of the unit. This allows the operator to access these ports without the need to move or reach behind the unit and possibly disturb the cultured embryos.

On top of the great stability, the small 100cm³ incubation chamber gives EC-9 the ability to recover the temperature and gas level faster than any other incubators in the market.

Safety, Built-in

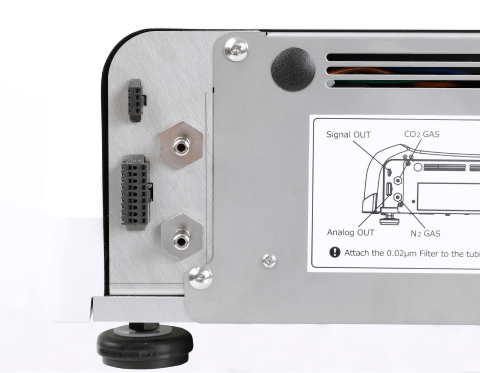

EC-9 comes with an analog output and BMS (contact relay) as a standard redundant safety feature. It can be easily connected to an external device such as a phone or data logging device that can call or text you when there are any irregularities taking place in your absence. This enables you to remotely protect your samples with a peace of mind while you are away from your lab.

Specifications

EC-9

External dimensions 530x580x170mm
Number of chambers 9 Chambers
Size of chamber 72x84x17mm
Temperature range 36-39℃
Operational emvironment 20-30℃
Temp.accuracy ±0.1℃ at 26℃ ambient
Temp.uniformity ±0.1℃ at 26℃ ambient
CO2 accuracy ±0.1%
CO2 range 0.0-20.0%
O2 accuracy ±0.5%
O2 range 2.0-18.0%
Power 115V/1.5A 230V/0.8A
50/60Hz
Weight 30kg
