Integrated Bio-Station

Home / Products / Workstations / Integrated Bio-Station

Confidence has no Competition

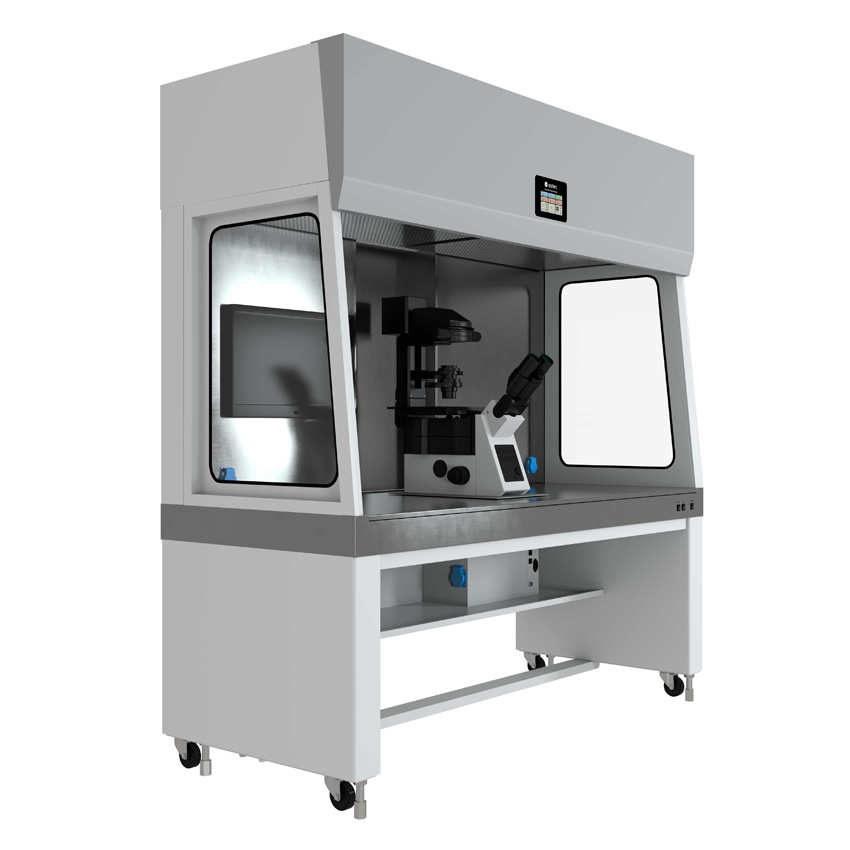

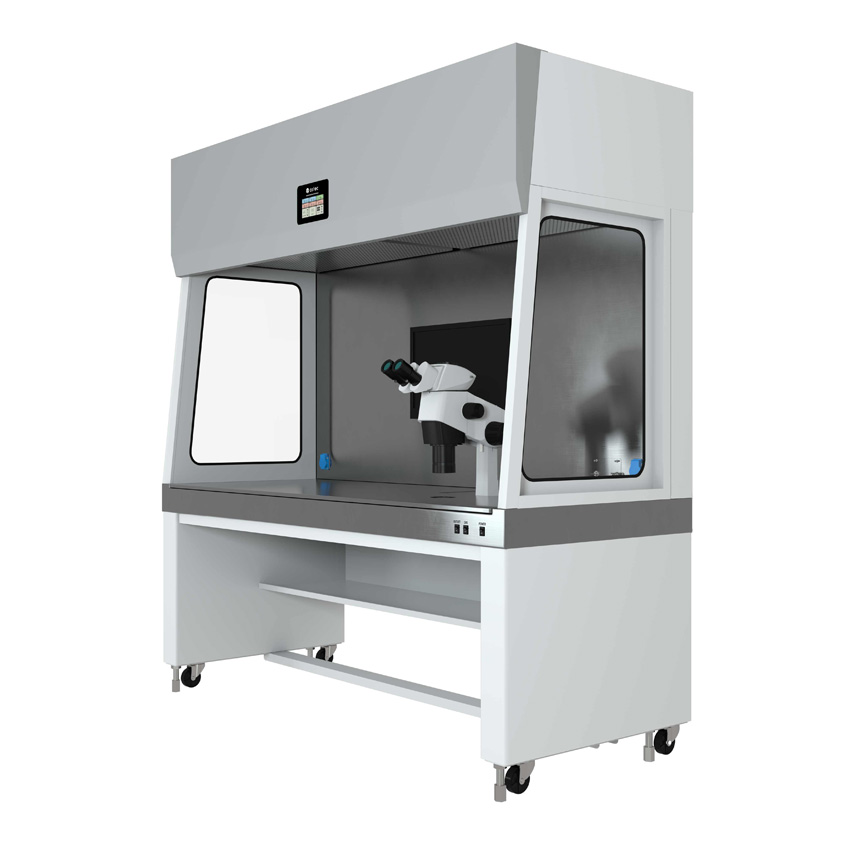

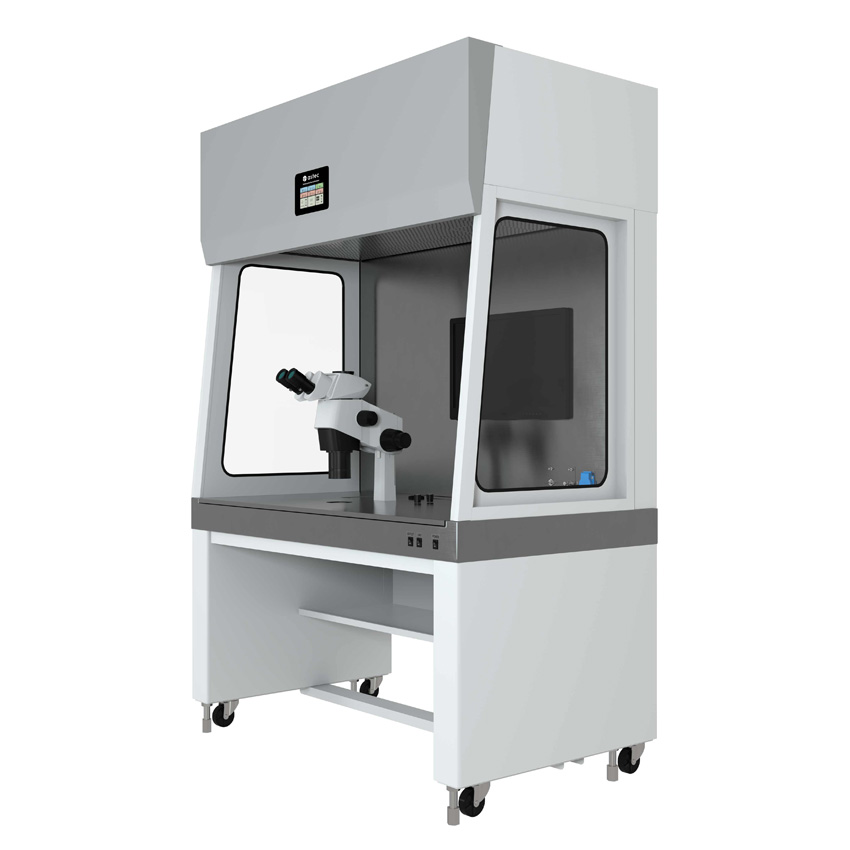

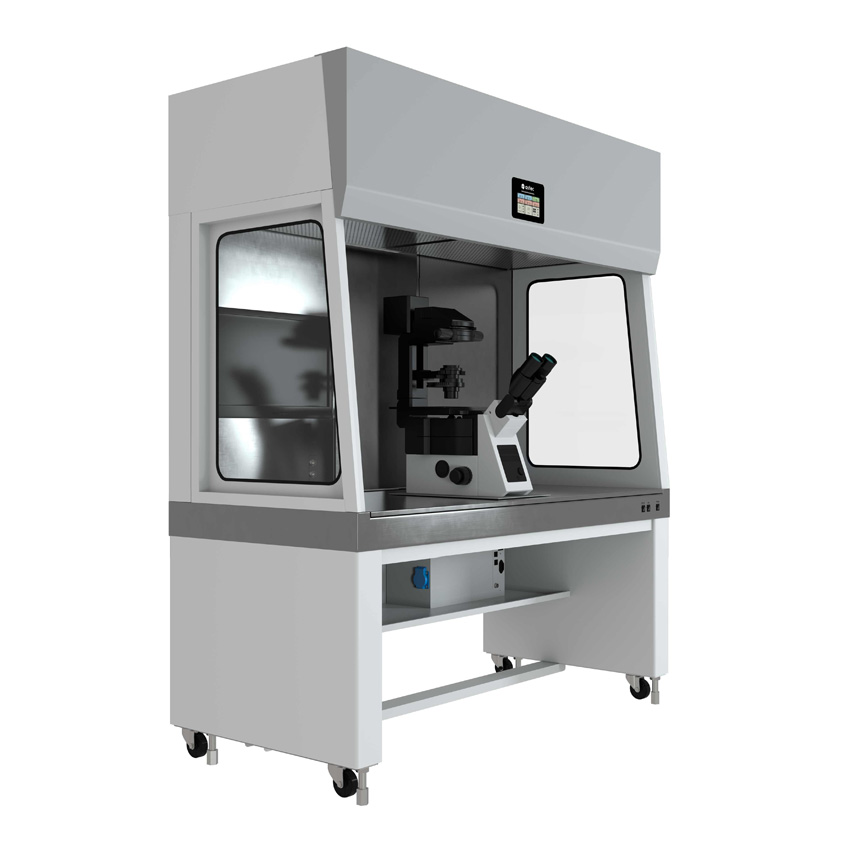

Introducing our most advanced and robust Integrated Bio Workstation, made from Grade A material using globally recognized Japanese workmanship, designed to redefine your IVF lab once and for all.

Catalog Download Specification

Features

Completely Customizable

Our unique ability to create and customize your desired workstation goes beyond our competitors reach. We offer a wide variety of options you can select from to meet your daily operations. Consult with our experts to see what we can do for you.

Flexible & Accessible

Light illumination stand of Stereomicroscope can be built-in under the working surface where all the functions are accessible from the working surface. Tell us what stereoscopes you wish to use and we can offer the appropriate fitting mechanism for you.

Touch Screen

Intuitive, easy to use touch-panel conveniently located in the front, which allows temperature, lights and air velocity control with just a touch of your fingertip.

A Workstation that will outlast its users!

Our integrated Bio Workstation is precisely built to reflect our unique and dependable engineering to our customers worldwide. As the leading manufacturer of Bio Medical Equipment in Japan, our main policy & strategy is to use long lasting material in the production of every ASTEC Bio made product leaving our facilities.

Distinct Features

Extra access for CO2, pre-mixed gas, and power plug for additional incubation device for safer handling of your samples.

Specification

AIMT Series

AIMT-180L

External dimensions (mm)	1,800 x 1,980 x 750
Working surface (mm)	1,700 x 645
Light (LED)	40W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	Weight
Weight	260kg

AIMT-200L

External dimensions (mm)	2,000 x 1,980 x 750
Working surface (mm)	1,900 x 645
Light (LED)	50W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	900W
Weight	280kg

AITT Series

AITT-160L

External dimensions (mm)	1,600 x 1,980 x 750
Working surface (mm)	1,500 x 645
Light (LED)	40W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	840W
Weight	240kg

AITT-180L

External dimensions (mm)	1,800 x 1,980 x 750
Working surface (mm)	1,700 x 645
Light (LED)	40W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	880W
Weight	260kg

AITT-200L

External dimensions (mm)	2,000 x 1,980 x 750
Working surface (mm)	1,900 x 645
Light (LED)	50W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	900W
Weight	280kg

AT Series

AT-80L

External dimensions (mm)	800 x 1,980 x 750
Working surface (mm)	700 x 645
Light (LED)	18W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	490W
Weight	155kg

AT-100L

External dimensions (mm)	1,000 x 1,980 x 750
Working surface (mm)	900 x 645
Light (LED)	20W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	560W
Weight	175kg

AT-130L

External dimensions (mm)	1,300 x 1,980 x 750
Working surface (mm)	1,200 x 645
Light (LED)	32W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	800W
Weight	210kg

AT-160L

External dimensions (mm)	1,600 x 1,980 x 750
Working surface (mm)	1,500 x 645
Light (LED)	40W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	840W
Weight	240kg

AT-180L

External dimensions (mm)	1,800 x 1,980 x 750
Working surface (mm)	1,700 x 645
Light (LED)	40W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	880W
Weight	260kg

AT-200L

External dimensions (mm)	2,000 x 1,980 x 750
Working surface (mm)	1,900 x 645
Light (LED)	50W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	900W
Weight	280kg

AIM Series

AIM-130L

External dimensions (mm)	1,300 x 1,980 x 750
Working surface (mm)	1,200 x 645
Light (LED)	32W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Anti-Vibration	Passive anti-vibration ready for inverted microscope
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	800W
Weight	210kg

AIM-160L

External dimensions (mm)	1,600 x 1,980 x 750
Working surface (mm)	1,500 x 645
Light (LED)	40W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Anti-Vibration	Passive anti-vibration ready for inverted microscope
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	840W
Weight	240kg

AIM-180L

External dimensions (mm)	1,800 x 1,980 x 750
Working surface (mm)	1,700 x 645
Light (LED)	40W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Anti-Vibration	Passive anti-vibration ready for inverted microscope
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	880W
Weight	260kg

AIM-200L

External dimensions (mm)	2,000 x 1,980 x 750
Working surface (mm)	1,900 x 645
Light (LED)	50W
Dawn lights	15W×2 (Variable with 3 intensities)
Vertical air velocity	0〜0.4m/sec (Variable with 5 different flows)
Filter efficiency	99.99％ or more (0.3μm particle size)
Cleanliness	Class 100
Anti-Vibration	Passive anti-vibration ready for inverted microscope
Monitor / Input	21-inch color monitor standard / HDMI, Display port, D-sub
Working surface warmer	Variable between 30℃～40℃
Glass thermo plate	Variable between 30℃～40℃
Power consumption	900W
Weight	280kg
