One Solution for all culture

AD-3100 CUBE

Drawer Incubator

Commonly known as the "CUBE", the AD-3100 provides the safest, most versatile solution for cell culture applications. There are 4 independent chambers which completely operate autonomous from each other, as if there were four individual incubators set in one unit. Each chamber has its own individual temperature control and gas mixing systems, all protected by an alarm system set by default. The "CUBE" has been widely used in the US, Europe, China, East Asia, and the Middle East since 2010.

Multiple Cultures with Different Environments - Enter the "CUBE"

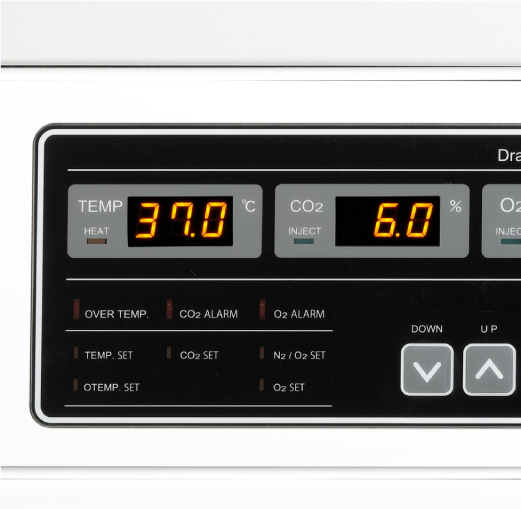

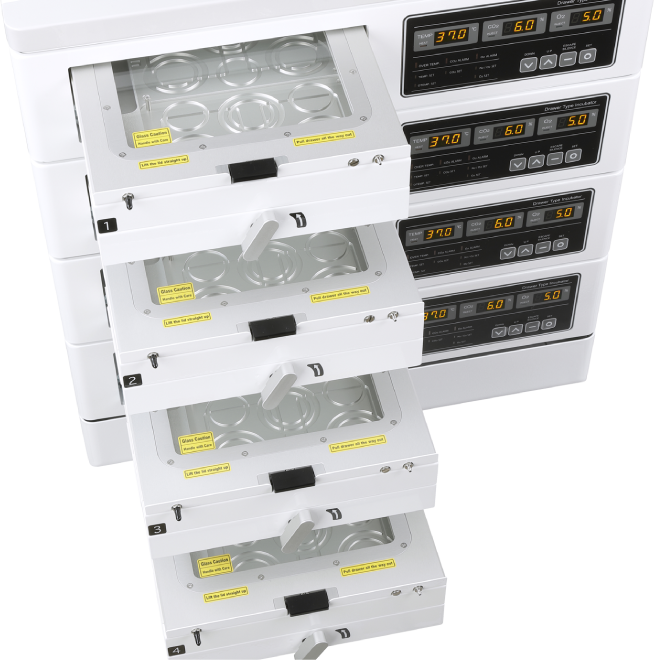

The AD-3100 Multi-Drawer Incubator (known as the "CUBE") has four truly independent chambers, each with fully independent control over temperature and gas mixture. This allows you to create the optimal environment for each culture according to the stage of the culture, the media being used, and other variables, thus ensuring the best outcomes for your patients!

Dry or Humidified Culture?
The choice is yours

Astec's Multi-Drawer Incubators offer extreme versatility for optimal results. They can be used in both dry and humidified conditions, allowing you to choose the best environment for each culture. The multi-drawer "CUBE" incubator can even simultaneously accommodate both dry and humidified conditions in different drawers!

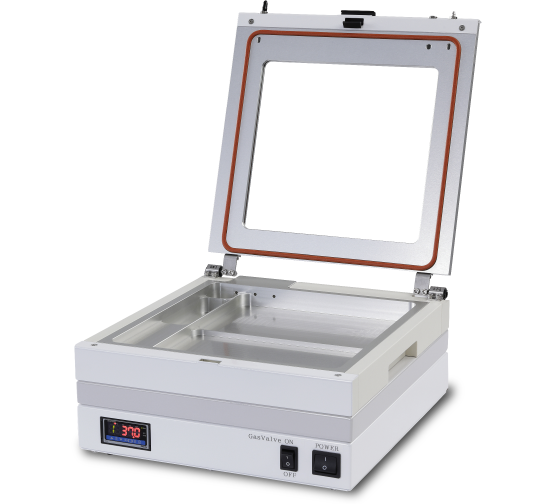

Heat-Wise (RH-3100) Option

Used as a straightforward satellite incubator in your workstation.

Safe, Simple and Robust

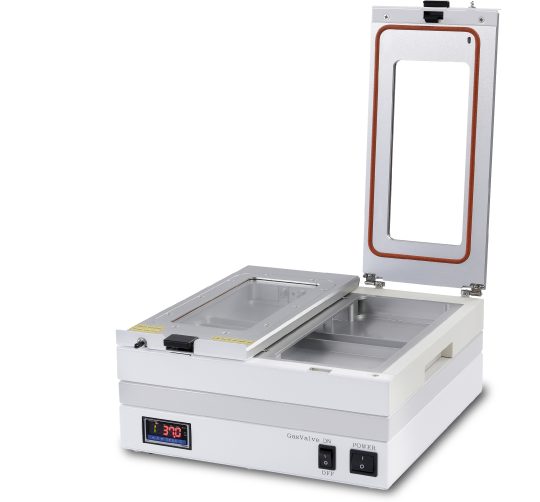

Just position the hand-held chamber on the Heat-Wise and use it as a straightforward satellite incubator in your workstation.

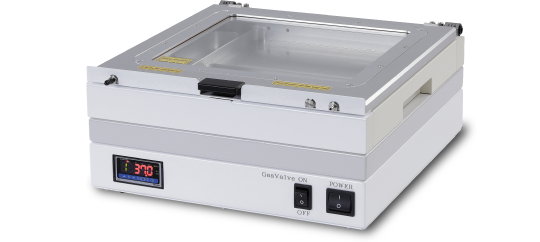

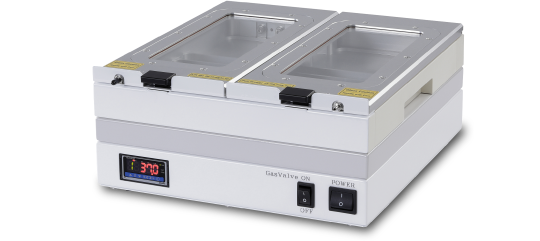

Heat-Wise is offered for both the Split Lid Hand-Held Chamber (HC-3100-2) and the Single Lid Hand-Held Chamber (HC-3100).

Thoughtful Design
With You In Mind

Our drawers are designed with the customer in mind!

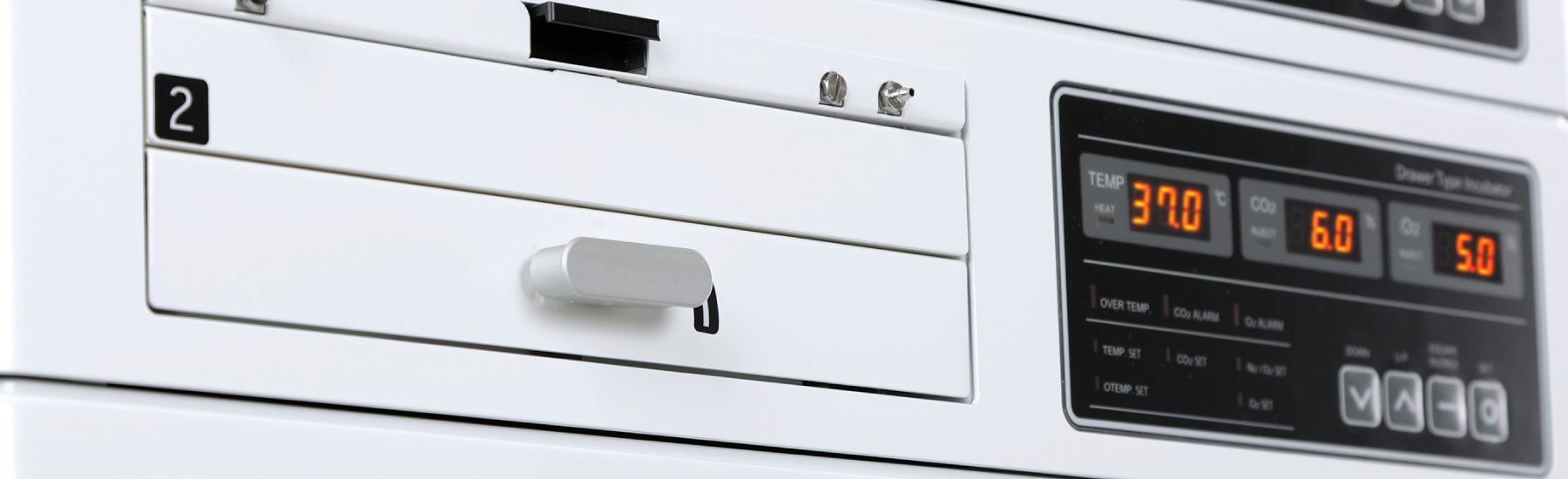

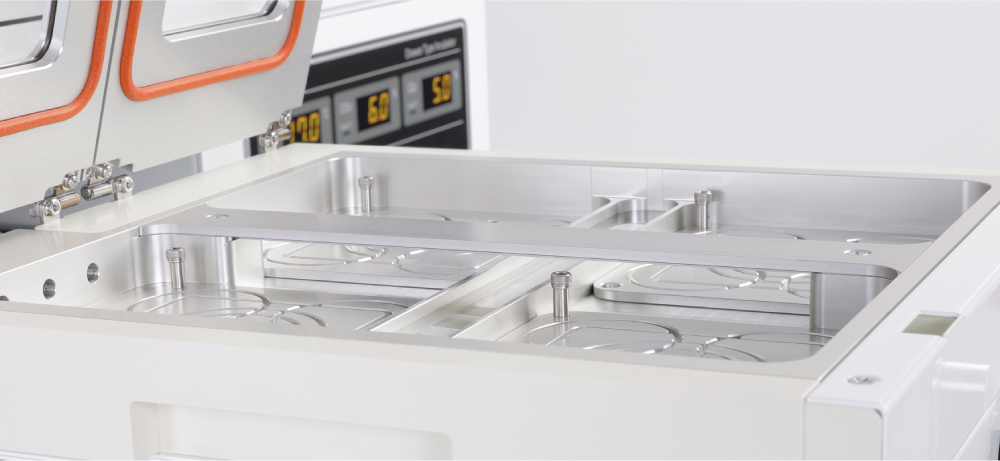

The handles on the drawers are curved all the way with a grip on the rim. Smooth drawer sliding rails allow the drawers to move in and out without any disturbance to the samples stored inside.

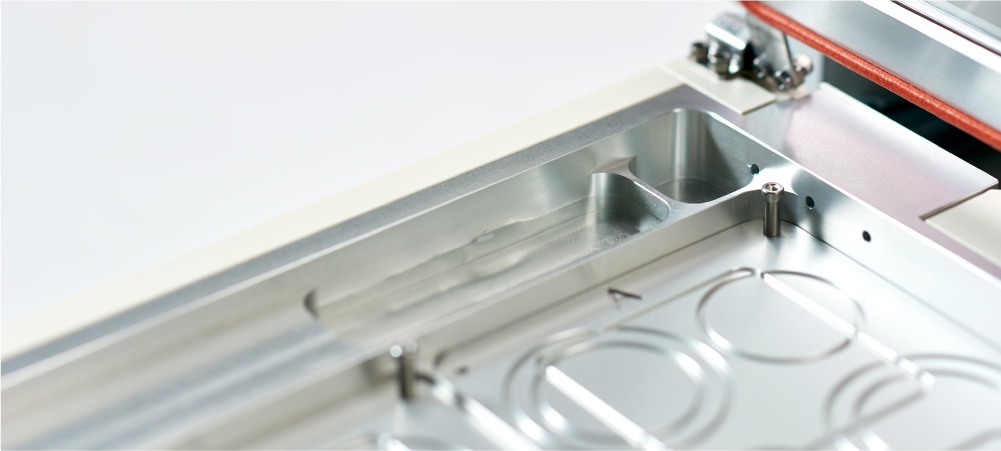

The unit is also very easy to maintain and clean! The drawers are removable for easy cleaning and access for maintenance. The main incubation block is made of aluminum and is autoclavable.

*A universal type bottom plate to fit most common plasticware from various manufacturers is the standard option. A customized bottom plate can be made to order if desired.

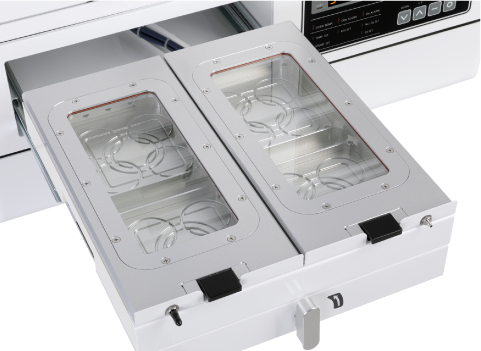

Renovated Split Door Option

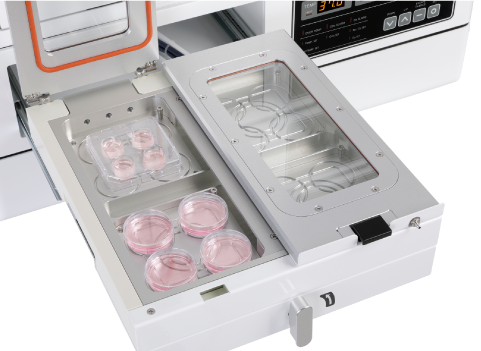

With the new divided lid option, dishes for up to two patients can occupy the same drawer. This unique feature allows you to access the desired dish in one chamber without disturbing others, while keeping each patient's dish separate in a compact environment.

The drawers are detachable and can be easily picked up and placed back on the tray, making this unit exceptionally easy to clean and maintain.

The main incubation block is made from Grade A aluminum and is autoclavable.

Japanese Precision & Reliability

As a leading company in Japan, we take pride in our precision manufacturing and technology. We apply a very high level of functional evaluation and quality control in order to create products that you can depend on for years to come. This precision and reliability has earned us high a level of customer satisfaction, both in Japan and overseas.
In an industry where there is a constant demand for both greater precision and reliability, we have managed to achieve both, while maintaining a lower cost to meet the stringent demands of the global market.



External dimensions (mm) W562 x D570 x 610
Number of chambers 4
Usable dim. of chamber (mm) W180 x D217 x 20
Capacity of each chamber 775 ml
Weight of each drawer 2.8kg
Operational environment 24~28ºC
Temp. accuracy +-0.1ºC
Temp. uniformity +-0.2ºC
CO2 sensor IR Sensor
CO2 accuracy +-0.1% with stabilized
CO2 uniformity +-0.3%
CO2 range 0.0~10.0%
O2 accuracy +-0.5%
O2 range 4.0~10.0%
Humidity 90%+
Humidity system Natural evaporation
Required gas CO2 and N2
Power AC110-115V 5A (Max) 50/60Hz
AC220-240V 2.5A (Max) 50/60Hz
Classifications IEC61312-1:2013

Hand Held Chamber(Single Lid Design)

Model HC-3100
Size (W×D×H) W180 mm × D217 mm × H20 mm
Capacity 781mL
Dish number 35mm: 12 dishes
60mm: 6 dishes
4well: 4 dishes

Hand Held Chamber(Split Lid Design)

Model HC-3100-2
One Compartment Size (W×D×H) W94 mm × D100 mm × H20 mm
One Compartment Capacity 186 mL (744 mL in total 4 compartments)
Dish number for one compartment 35mm: 4 dishes
60mm: 1 dish
4well: 1 dish
