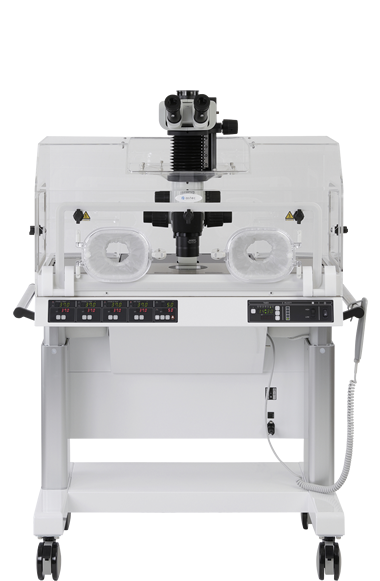

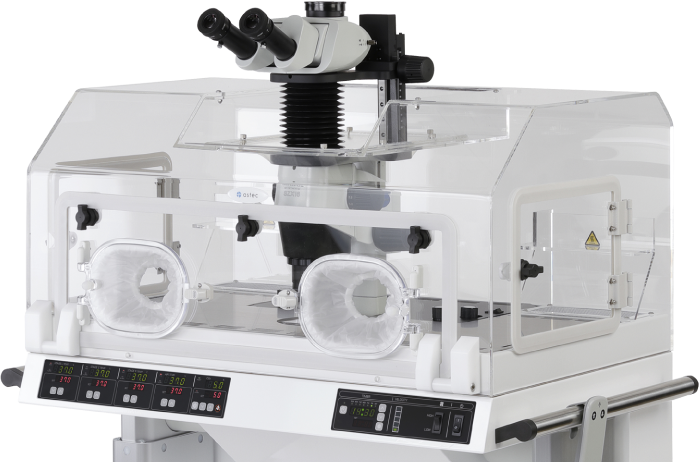

SS-250

Smart Station
Comfortable Crib for your Lab

With the end-user's comfort at the core of our design principles, the Smart Station delivers unrivaled ergonomics that improve the quality of your time in the lab. From oocyte pick-up to embryo transfer, and many other tasks, the Smart Station handles them all with a combination of functionality, accuracy, and the most comfortable way for you to work.

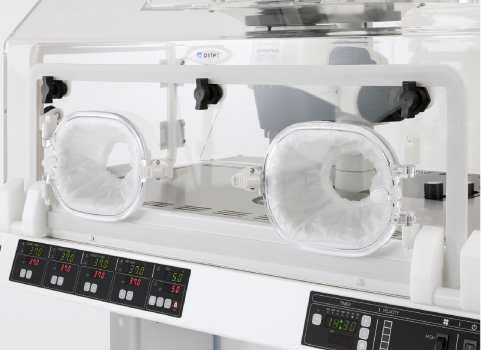

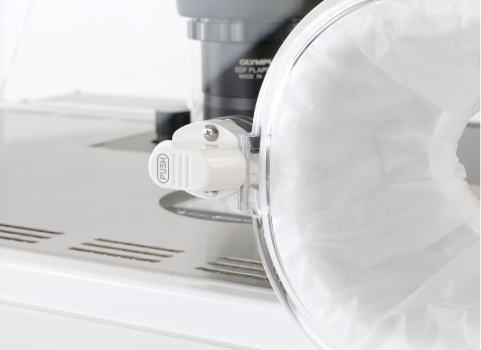

Conveniently placed circular arm openings, a large front window and two side doors provide easy access for daily operations such as cleaning and disinfection. CO2 gas is supplied through the gas port located underneath the chamber, and gas concentration can be set from 0.0 to 10.0%.

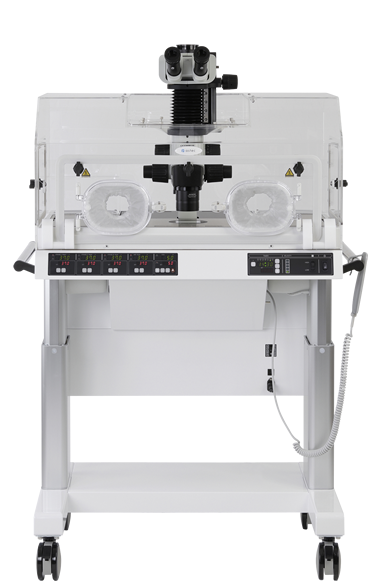

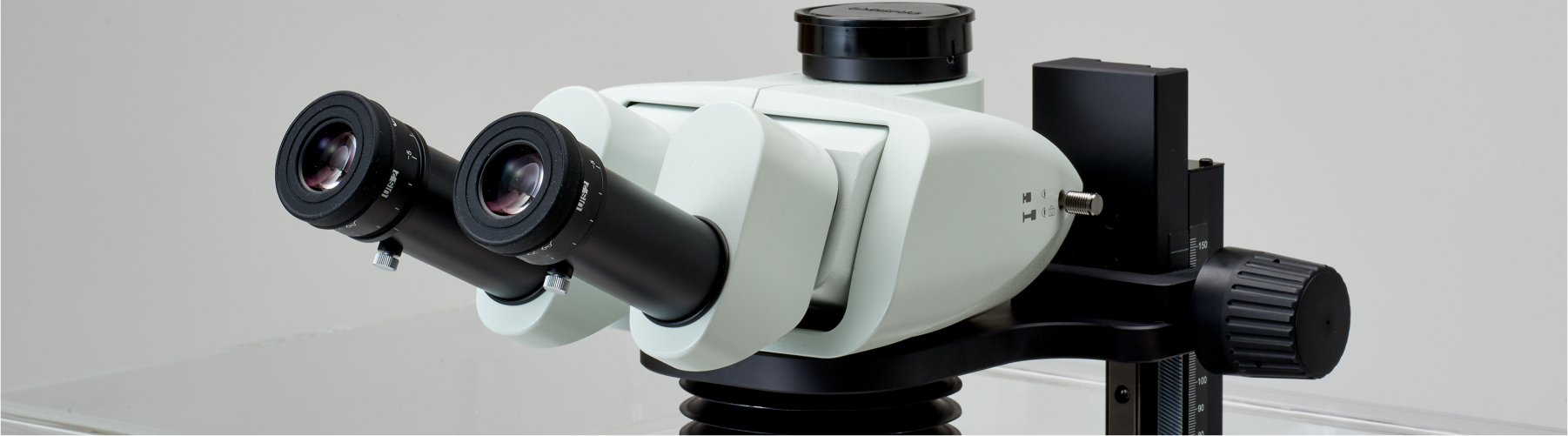

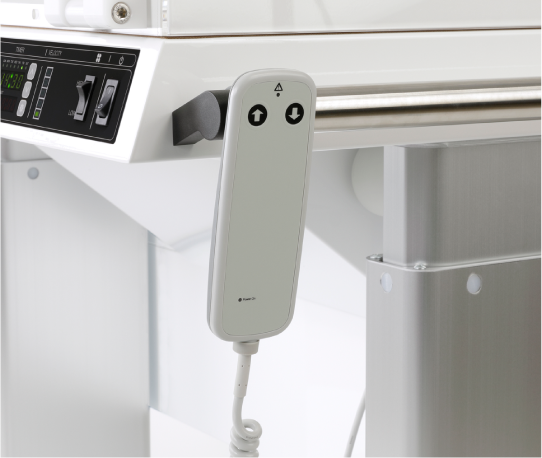

With the combination of the motorized stand, and if ordered with a height adjustable microscope head and long tilting eyepiece tube, Smart Station lets you configure the most flexible and comfortable way to work.

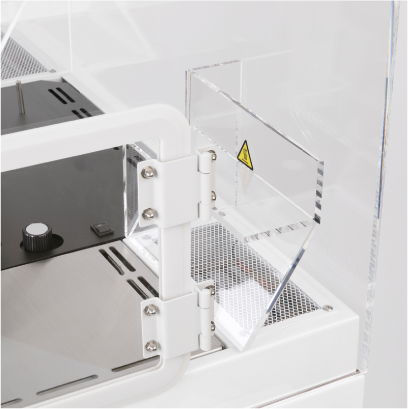

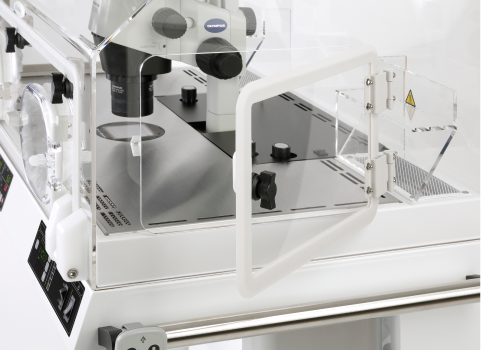

The large front door folds down for easy and safe handling of loaded ET catheters. Side doors on both sides allow for convenient passing in and out of materials. A rear door is also optional.

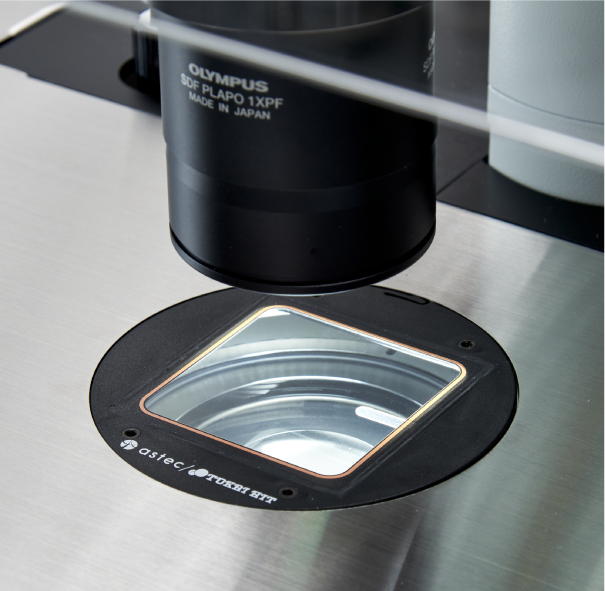

The clean, spacious full-flat working surface is a single piece of heated stainless-steel with an integrated glass thermo plate, allowing for culture dishes to be slid across the surface without having to lift them, minimizing the risk of spillage.

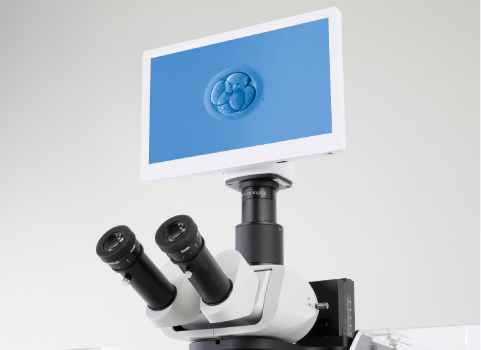

Integration of microscope optics and illumination can be made for most stereo microscopes available in the market.

A Utility Smart-Shelf on each side increases usable space without compromising the table top working space.

ASTEC TrueChrome

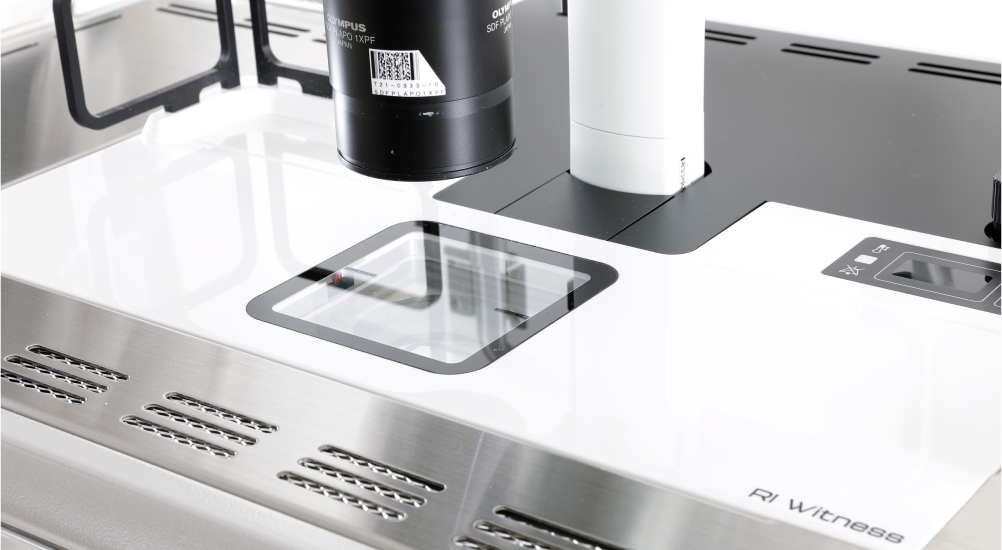

Smart Station can perfectly accommodate the RI Witness ART Management System. RI Witness, based on RFID tag technology, provides extra quality control in the IVF lab. Smart Station is a great match with RI Witness in creating a safe and persistent environment for embryo handling in the lab.

Specifications

SS-250

External Dimensions 840 x 620 x 1190-1440 mm (W x D x H)
Front Door Aperture 710 x 190 mm (W x H)
Side Door Aperture 310 x 225 mm (W x H)
Stage Height 840〜1090 mm
Weight Approx. 80 kg (Scope excluded)
Temp. Control Point Working Stages: Right, Left, Center and Space
Warm-up Time 30 min. or more
Wattage 500W (120W at 37°C stable operation)
Operating Environment Temp. 20〜30°C
Operating Humidity Limit 20〜80%RH (non condensing)
Power Source AC110V, 115V, 220-240V 50/60Hz
Working Stage: Right Left and Center
Temperature Control Range Room temperature + 5°C -40°C
Temperature Fluctuation Range ±0.3°C (Ambient Temp.: 28°C, Set Temp.: 37°C)
Temperature Distribution ±0.5°C (Ambient Temp.: 28°C, Set Temp.: 37°C)
Working Space
Working Space Dimensions 826 x 420 mm (W x D)
Temperature Control Range Room temperature + 5°C - 40°C
Temperature Fluctuation Range ±0.5°C (Ambient Temp.: 28°C, Set Temp.: 37°C)
Temperature Distribution ±1.0°C (Ambient Temp.: 28°C, Set Temp.: 37°C)
CO2 Control Range 0.0 – 10.0%
CO2 Concentration Fluctuation
Range
±0.2%
CO2 Consumption Approx. 170L/day (Approx. 7 days with 2.5kg cylinder)
Air Control
Air Filter 0.3um, Efficiency 99.97% or more
Air Velocity 0 – 0.5m/sec. variable
Ventilation Air Volume Approx. 200 times/h @ 0.5m/sec wind speed
