ASTEC SureGrip

ASTEC SureGrip Dishes are meticulously designed to support a range of IVF procedures, including the preparation, culture, and handling of gametes and embryos.
Crafted in Japan from non-toxic medical-grade polystyrene, these dishes ensure the highest standards of safety and reliability.
The high transparency of the material significantly enhances optical clarity and visibility, crucial for delicate IVF processes. These dishes feature a thoughtfully engineered design with special handles, edges, and rings that facilitate easy gripping and handling, thereby reducing the risk of accidents and improving overall workflow efficiency in the lab.
Each lot of ASTEC SureGrip Dishes undergoes comprehensive testing, including MEA (Mouse Embryo Assay), SMA (Sperm Motility Assay), and LAL (Limulus Amebocyte Lysate) tests, ensuring consistent quality and performance.
For detailed quality assurance, Certificates of Analysis (COAs) are readily available and can be downloaded from (link for COAs).

Features of‘Suregrip’dishes

●A first-of-its-kind dish designed to be confidently and easily handled by your fingertips.
“Suregrip,” gentle protrusions on the edge of the dish lid and main body (design patent registration pending)

●With an inherent tactile feel, Suregrip allows for safer handling of the dish and lid.

●With just the right amount of grip, you can feel more secure when handling the dish.

●Suregrip engineering is also used for the 4-well dish.
We have designed a dish that is one step ahead in the pursuit of safety and convenience.
・Patent pending central slope and freezing device holder
・The corners of each well in the 4-well dish are moderately rounded to reduce the risk of losing embryos at the edge of the well.
・Displaced embryos can be easily seen due to the rounded edges.
・The bottom of each well and the tip of the freezing device are designed to be in the same focal plane under the microscope, eliminating the need for unnecessary focus adjustments and other microscope operations.
・The slope of the central cross-shaped well is optimized for thawing operations.

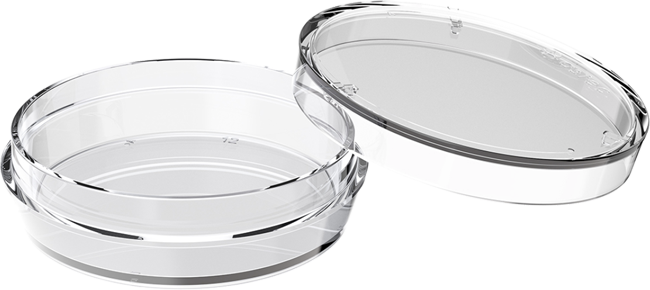

Petri Dish 35mm Dish

Special design with an extended ring on the edge of the lid for easy opening.
Unique design of a tapered base for easy lifting. An extra ring on the base for better gripping and to reduce the risk of accidents. Markers for 3,6,9 & 12 on the dish to prevent disorientation. The lid is designed with posts for better CO2 exchange.

Intended Use

For wide range of applications, can be used for gametes, embryos, cells and other microorganism culture and examination.

Product Details
Product Name SureGrip 35mm Dish
Product Code AID-35
Material Non-toxic medical grade polystyrene
Dimensions 40x12mm
Sterility Gamma Irradiation
Product Specifications 20X25,500/box

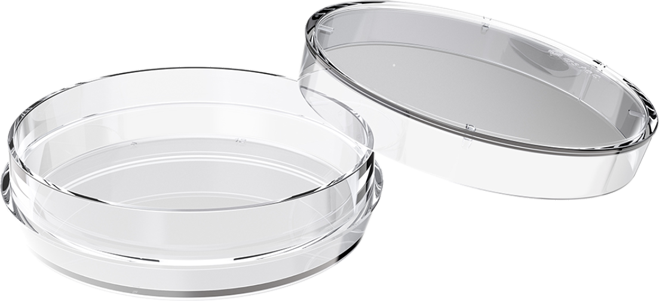

Petri Dish 60mm Dish

Special design with an extended ring on the edge of the lid for easy opening.
Unique design of a tapered base for easy lifting. An extra ring on the base for better gripping and to reduce the risk of accidents.
Markers for 3,6,9 & 12 on the dish to prevent disorientation. Marking line on the dish and lid for matching the ID of the media drops.
The lid is designed with posts for better CO2 exchange.

Intended Use

For wide range of applications, can be used for gametes, embryos, cells and other microorganism culture and examination.

Product Details
Product Name SureGrip 60mm Dish
Product Code AID-60
Material Non-toxic medical grade polystyrene
Dimensions 58x15mm
Sterility Gamma Irradiation
Product Specifications 20X25,500/box

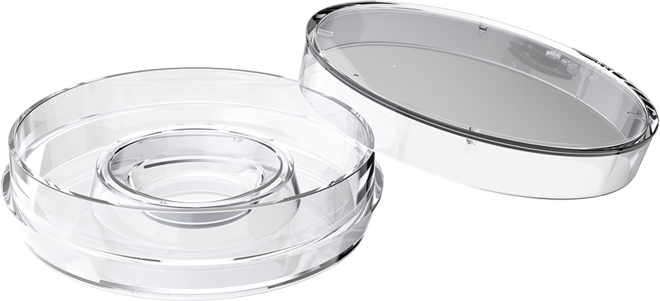

Petri Dish Center Well Dish

Special design with an extended ring on the edge of the lid for easy opening.
Unique design of a tapered base for easy lifting. An extra ring on the base for better gripping and to reduce the risk of accidents.
Markers for 3,6,9 & 12 on the dish to prevent disorientation. Marked with numbers on the inner well.
The lid is designed with posts for better CO2 exchange.
Engineered with a double-layer, sloped inner wall to avoid embryos hiding along the wall.
A rounded edge at the bottom of the inner well reduces the risk of losing the embryo along the edge.

Intended Use

For wide range of applications, can be used for gametes, embryos, cells, and other microorganism freezing, thawing and handling.

Product Details
Product Name SureGrip Center Well Dish
Product Code AID-CW
Material Non-toxic medical grade polystyrene
Dimensions 58x15mm
Sterility Gamma Irradiation
Product Specifications 20X25,500/box

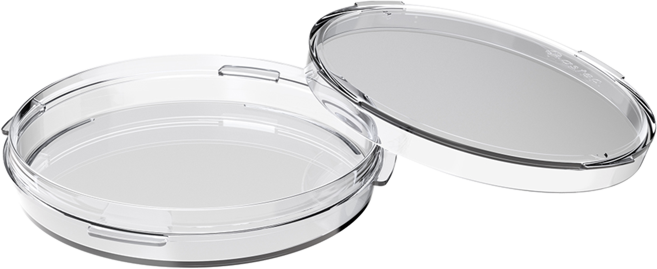

SureGrip ICSI Dish

Special design with an extended ring on the edge of the lid for easy opening.
Unique design of a tapered base for easy lifting.
Extra handles on the lid and base for more controlled opening and to reduce the risk of accidents.

Intended Use

For wide range of applications, can be used for gametes, embryos, cells and other microorganism handling and examination. Shallowed design for ICSI procedure.

Product Details
Product Name SureGrip ICSI Dish
Product Code AID-ICSI
Material Non-toxic medical grade polystyrene
Dimensions 55x10mm
Sterility Gamma Irradiation
Product Specifications 10X50,500/box

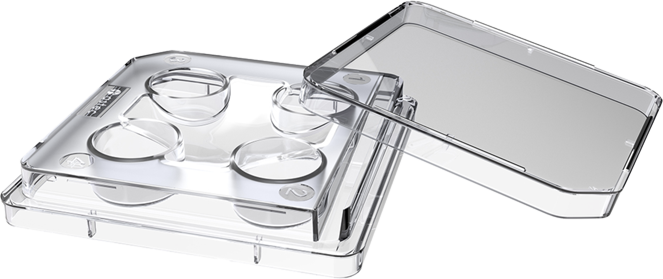

SureGrip 4-Well Dish

Special design with an extended ring on the edge of the lid for easy opening.
Unique design of a base slightly larger than the lid makes for easy lifting and holding. Extra handles on the lid and base for simplified opening and to reduce the risk of accidents.
Rounded edges at the bottom of the 4 wells prevent embryos from hiding. Distinctive design with a central well with concave bottom for easy embryo location and handling.
Engineered into the dish is a slopping holder for cryo straws.

Intended Use

For wide range of applications, can be used for gametes, embryos, cells and other microorganism culture, freezing, thawing, handling, and examination.

Product Details
Product Name SureGrip 4-Well Dish
Product Code AID-4WH
Material Non-toxic medical grade polystyrene
Dimensions 65x65x12mm
Sterility Gamma Irradiation
Product Specifications 4x30, 120/box
