ASTEC Pipette

ICSI Micropipette

Astec micropipettes are designed and manufactured under the direct supervision of scientists who are experts in the field of assisted reproduction technology (ART) and micromanipulation. Each micropipette is hand-crafted by highly trained technicians in a controlled environment and is individually examined for quality assurance.

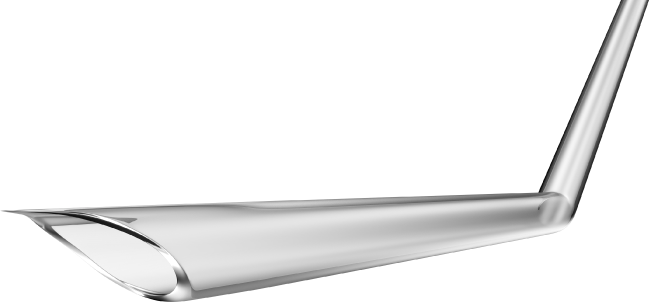

Injection Pipette (Smoothing Processed)

Used to perform intracytoplasmic sperm injection (ICSI). We offer various types of tips and angles, with customized pipette specifications also available upon request.

The Smoothing Process on the outer bottom edge reduces invasive damage to the embryo during the microinsemination, which reduces the denaturation rate.

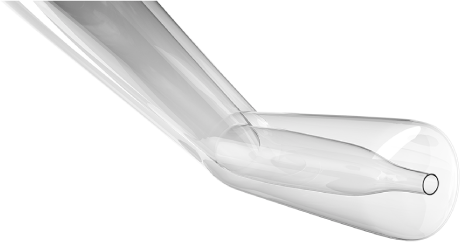

Holding Pipette

Used to hold an oocyte or embryo in position during ICSI and other micromanipulation procedures. There are three series and six sizes to choose from.

V Type

Characteristics

  • Short taper
  • Long Parallel wall section
  • Tip to elbow length (0.55mm or 1.00mm)

Advantages

  • Smooth control of sperm injection and cytoplasm suction
  • Less cytoplasm draw back when breaking oocyte membrane
  • Less damage to oocyte
  • Better fertilization and embryo development
  • Multiple sperm can be loaded and injected

Disadvantages

  • May not be easy to immobilize sperm for some embryologists who need press down very hard on sperm tail

H Type

Characteristics

  • Longer taper
  • Short parallel wall
  • Longer tip to elbow length (0.75mm)

Advantages

  • Multiple sperm can be loaded and injected
  • Smooth control of sperm injection
  • Less damage to oocyte
  • Better fertilization and embryo development

Disadvantages

  • Sperm may turn around when loading and injecting multiple sperm

W Type

Characteristics

  • Short taper
  • No parallel wall
  • Standard tip to elbow length (0.55mm)

Advantages

  • Strong and less flexible tip for ease of immobilizing sperm

Disadvantages

  • May suck lots of cytoplasm, especially for people who are not familiar with this type of pipette
  • Sperm may turn around when loading and injecting multiple sperm
