Introducing our most advanced and robust Integrated Bio Workstation, made from Grade A material using globally recognized Japanese workmanship, designed to redefine your IVF lab once and for all.
AIMT-180L
AIMT-200L
AITT-160L
AITT-180L
AITT-200L
AT-80L
AT-100L
AT-130L
AT-160L
AT-180L
AT-200L
AIM-130L
AIM-160L
AIM-180L
AIM-200L
You choose, we deliver!
Our unique ability to create and customize your desired workstation goes beyond our competitors reach. We offer a wide variety of options you can select from to meet your daily operations. Consult with our experts to see what we can do for you.

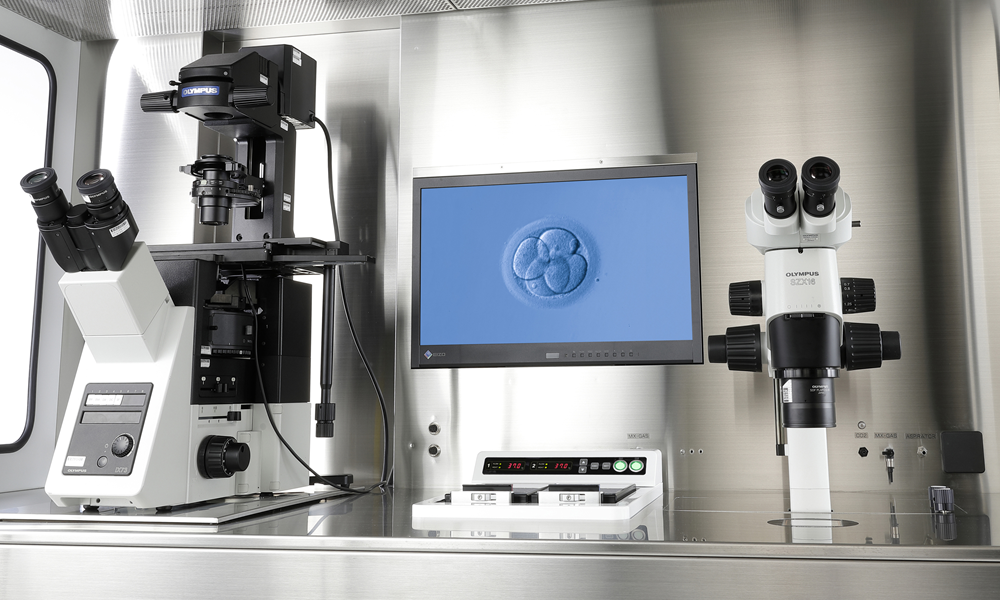

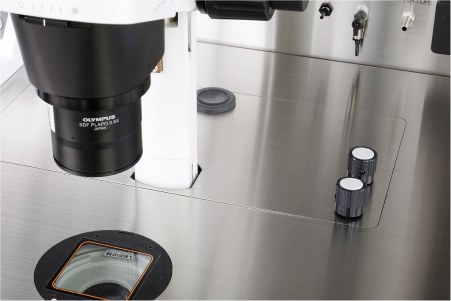

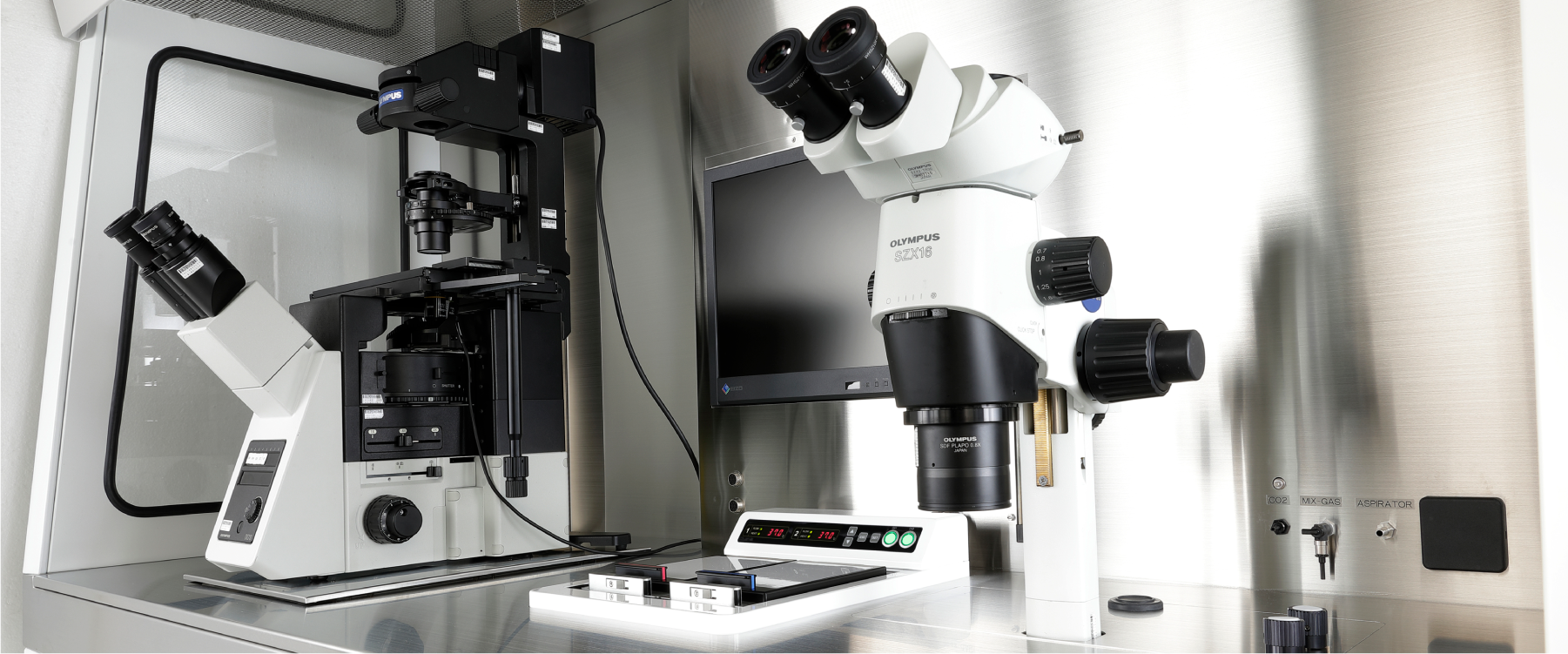

Light illumination stand of Stereomicroscope can be built-in under the working surface where all the functions are accessible from the working surface. Tell us what stereoscopes you wish to use and we can offer the appropriate fitting mechanism for you.

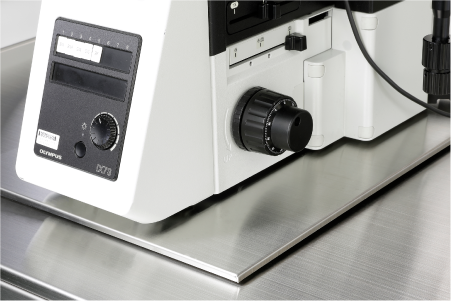

Built-in anti-vibration table comes with the workstation as a standard feature on AIM and AIMT models.

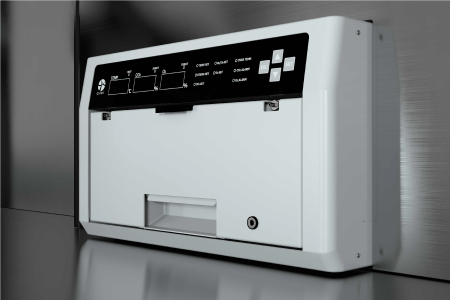

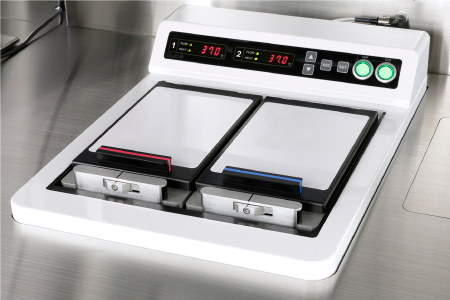

Custom built-in Mini benchtop (MN-2) or Single Drawer (SD-830) conveniently placed within your reach. Dry or Humid? You can choose. Extra Security with a lockable lid and observation window.
For more details for MINI and SD-830 incubators, please see,

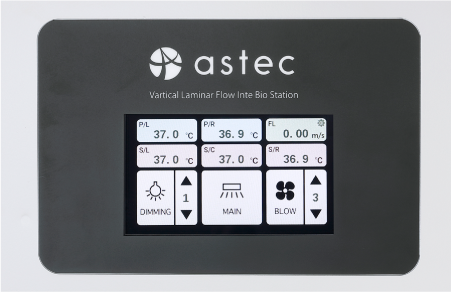

Intuitive, easy to use touch-panel conveniently located in the front, which allows temperature, lights and air velocity control with just a touch of your fingertip.
Our integrated Bio Workstation is precisely built to reflect our unique and dependable engineering to our customers worldwide. As the leading manufacturer of Bio Medical Equipment in Japan, our main policy & strategy is to use long lasting material in the production of every ASTEC Bio made product leaving our facilities.

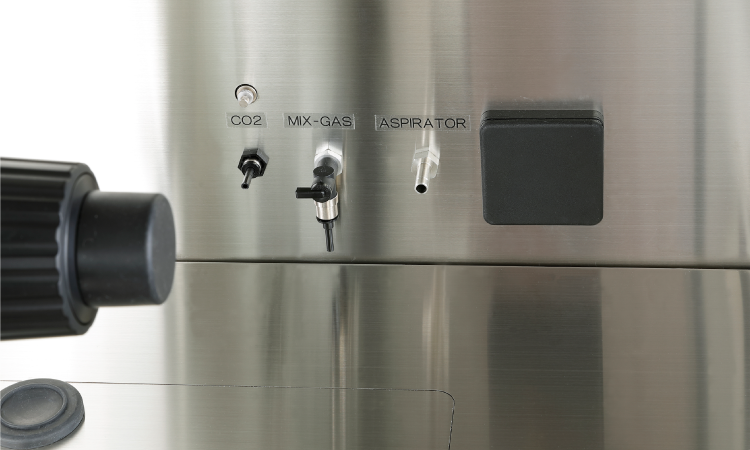

Extra access for CO2, pre-mixed gas, and power plug for additional incubation device for safer handling of your samples.

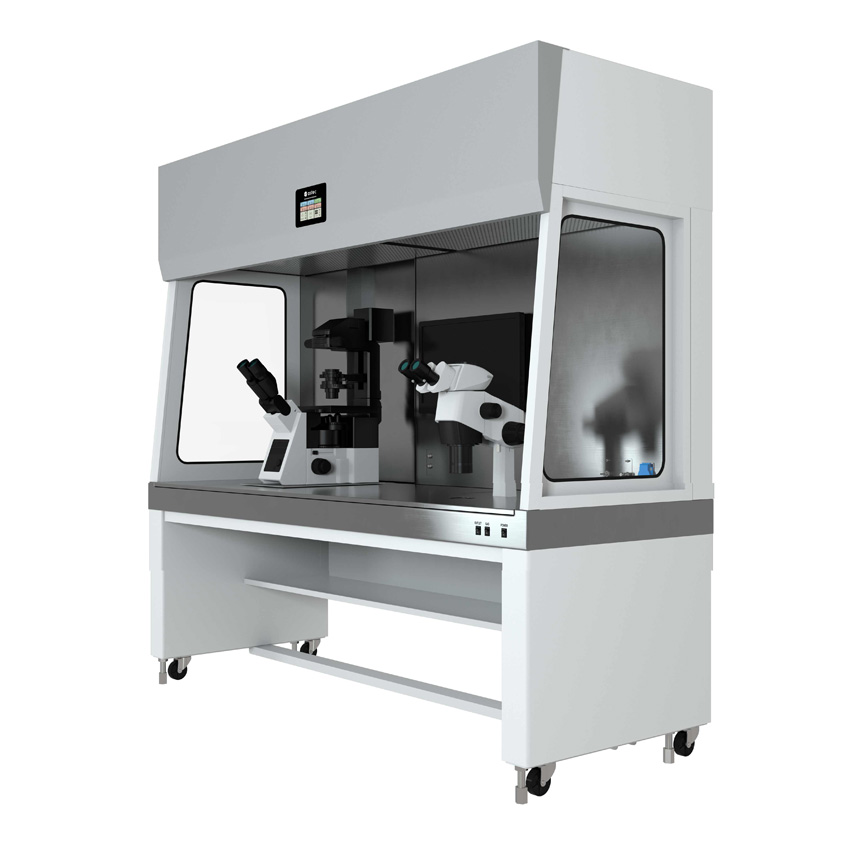

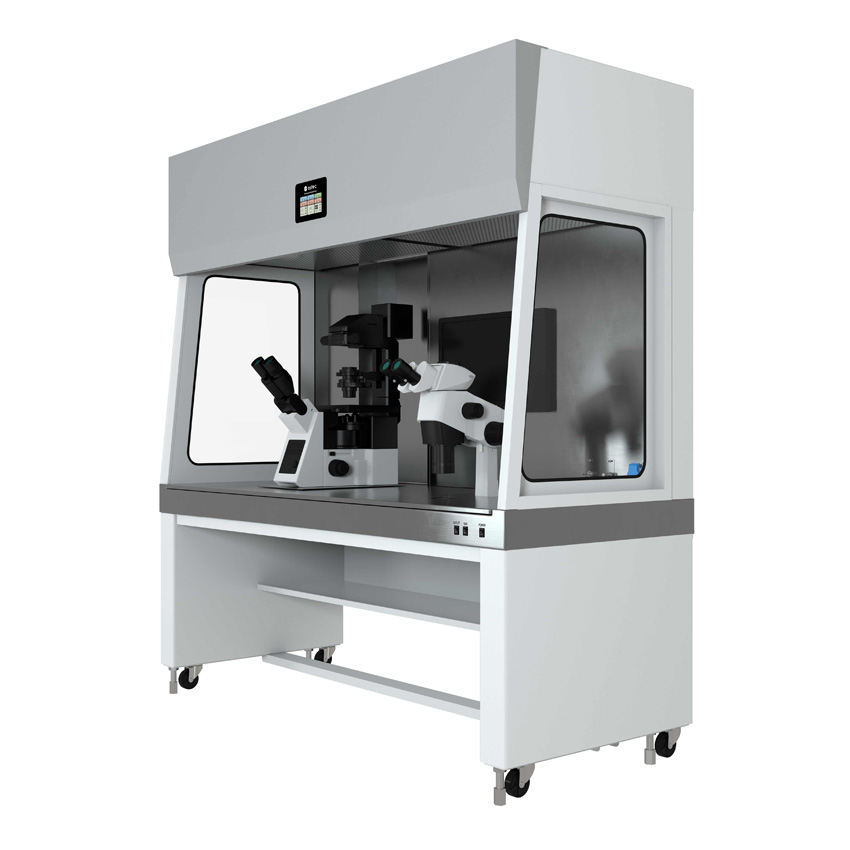

AIMT Series

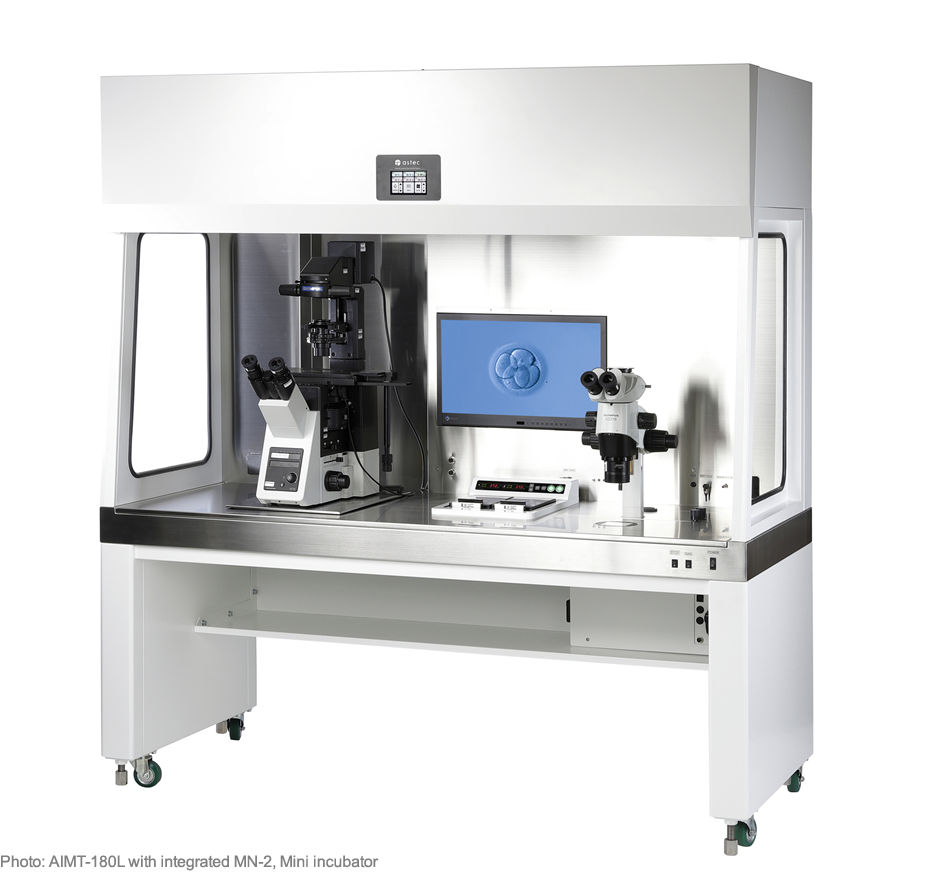

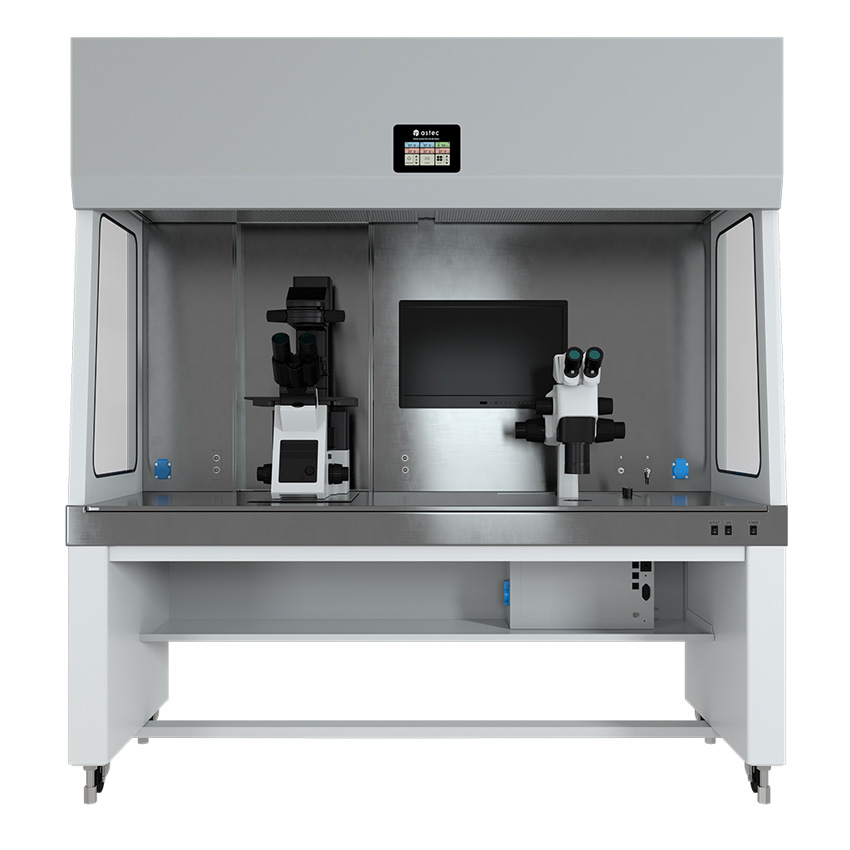

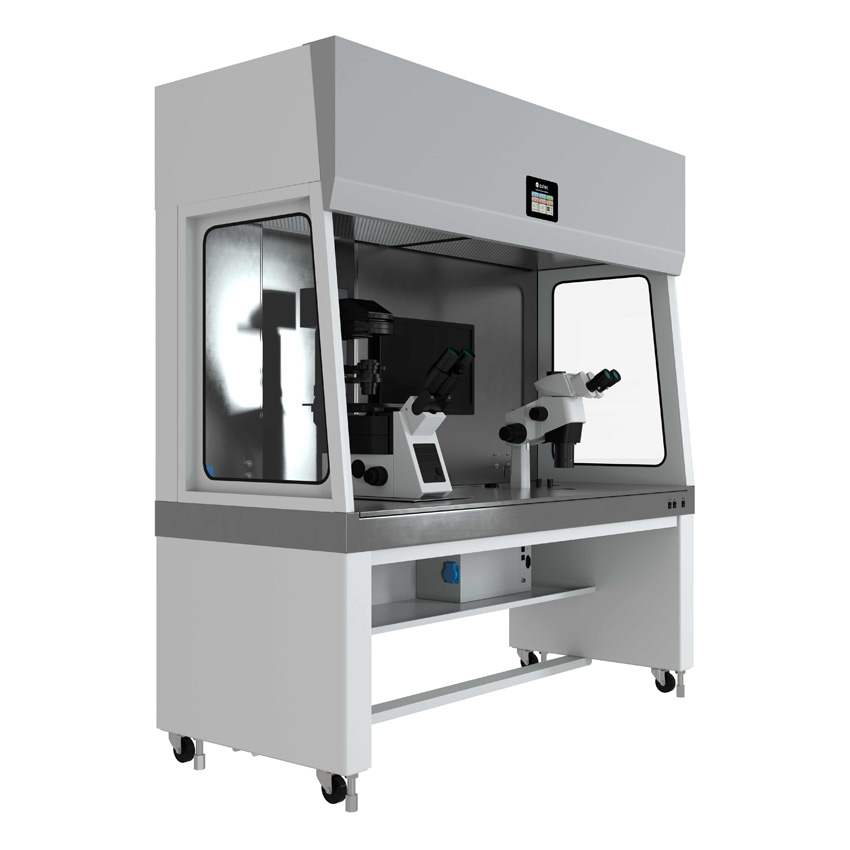

AIMT-180L

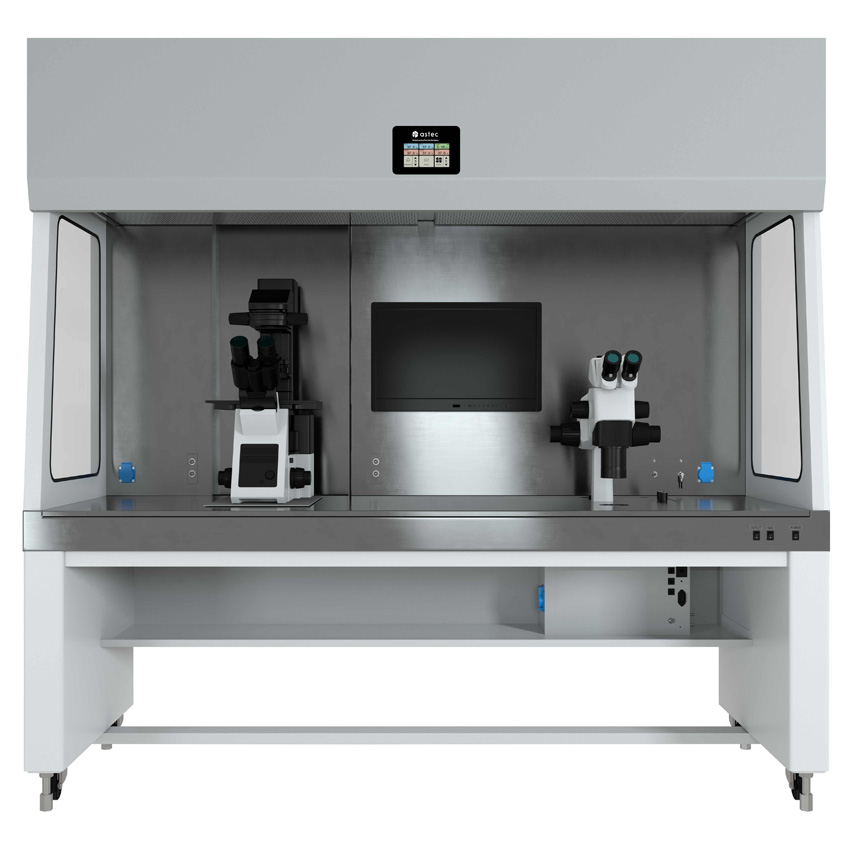

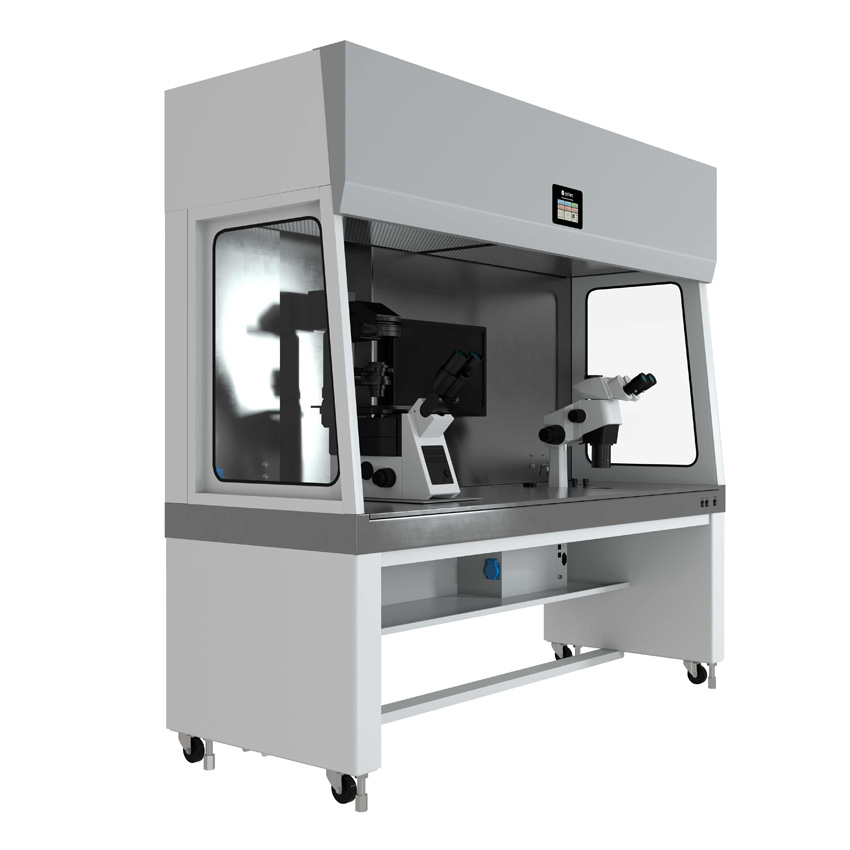

AIMT-200L

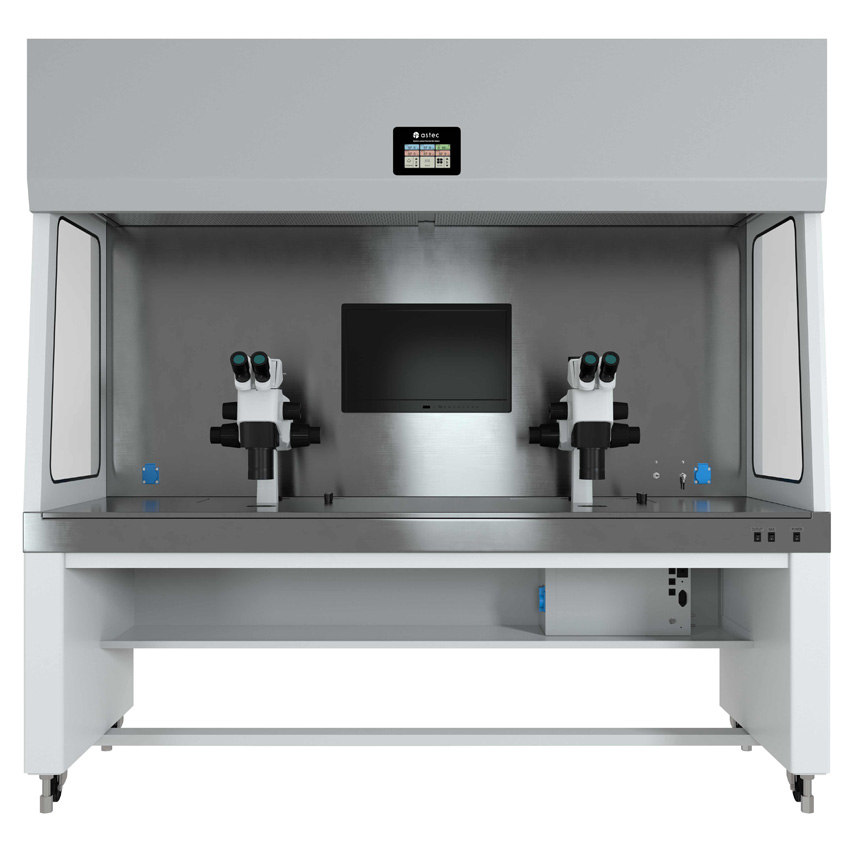

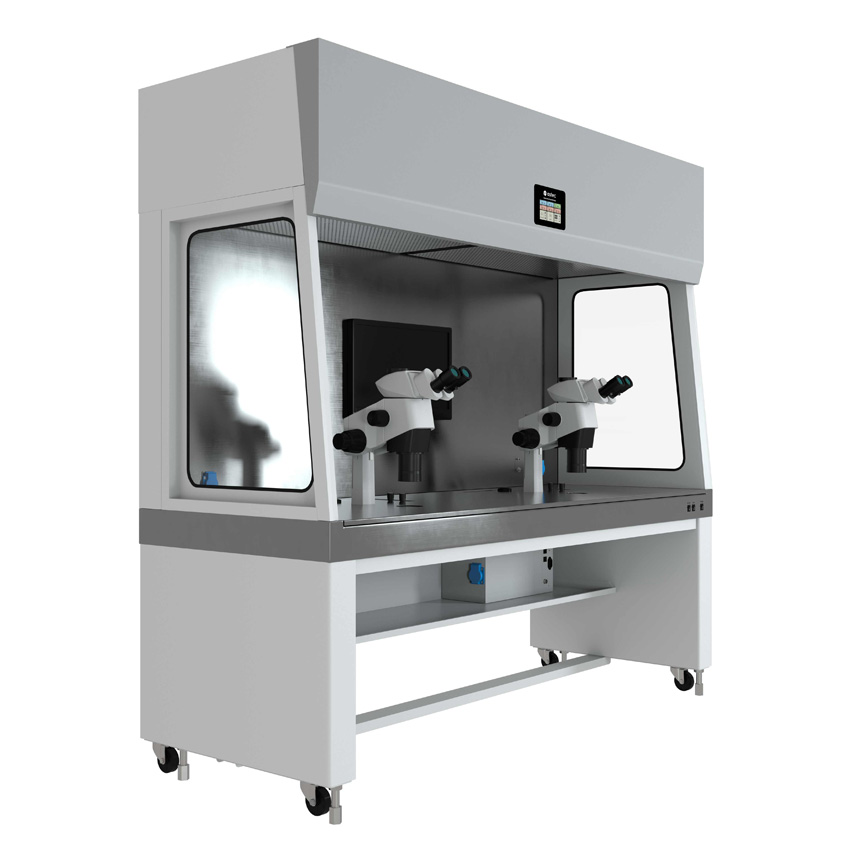

AITT Series

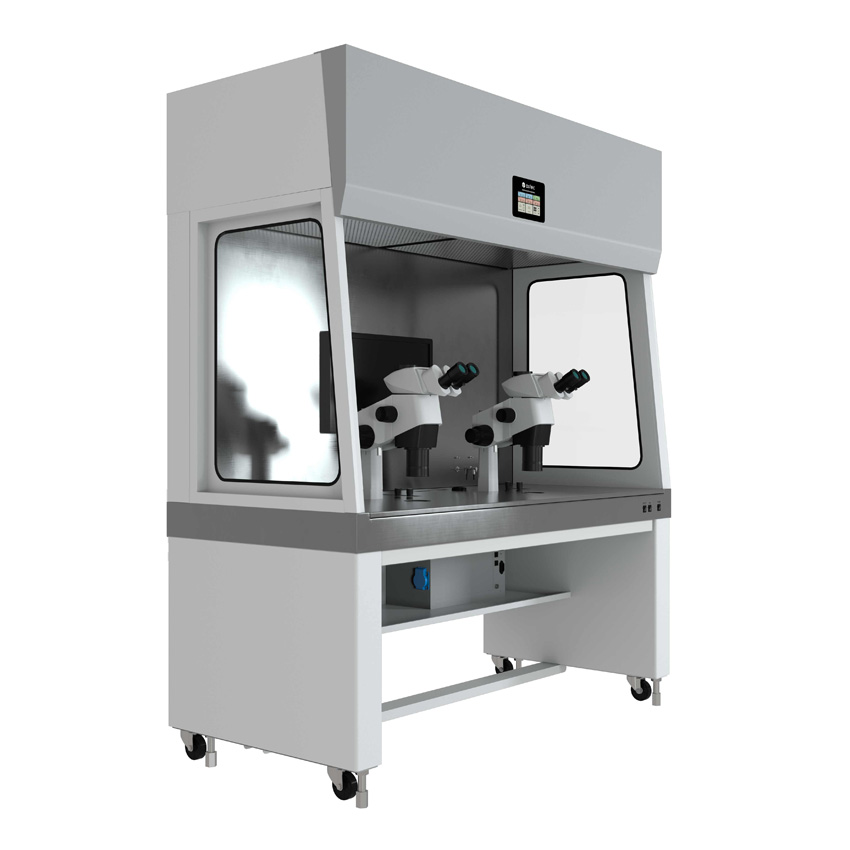

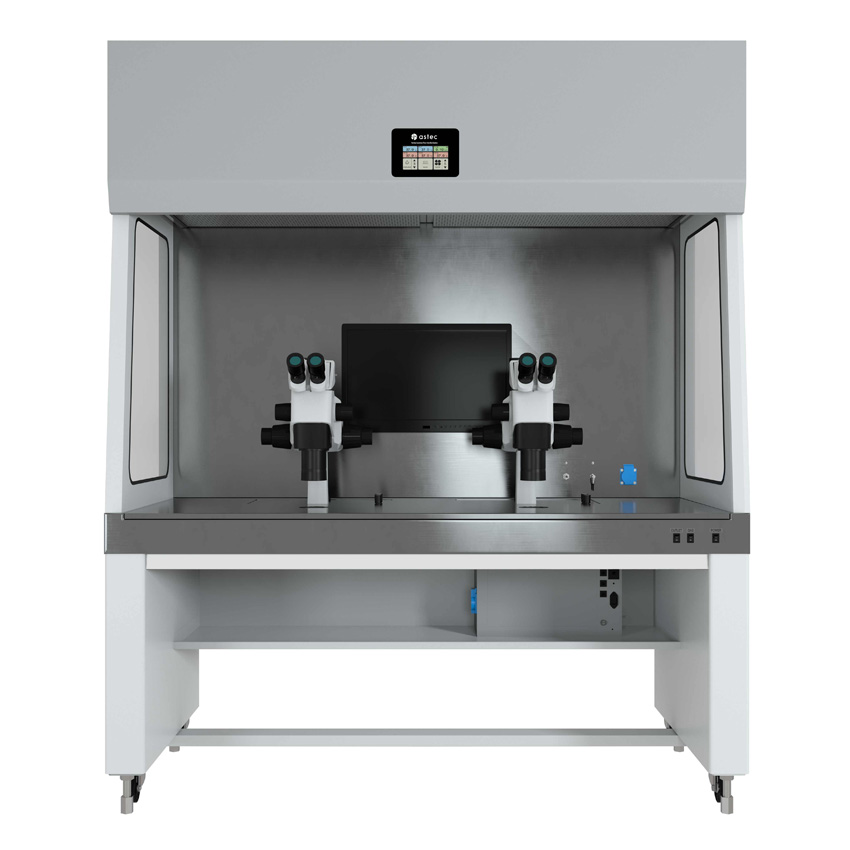

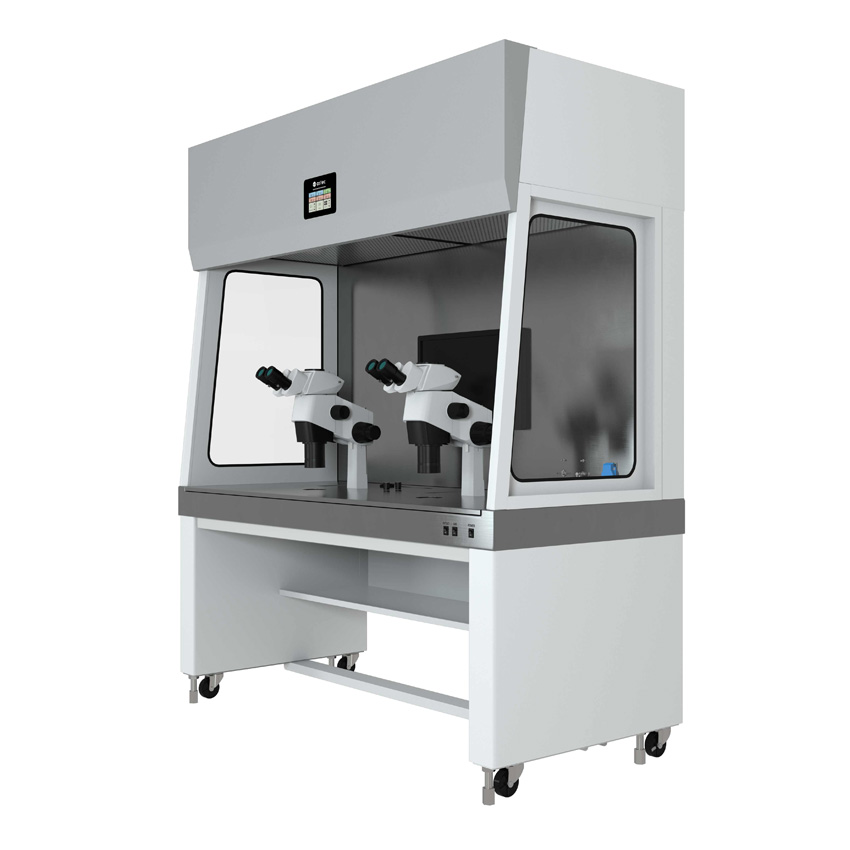

AITT-160L

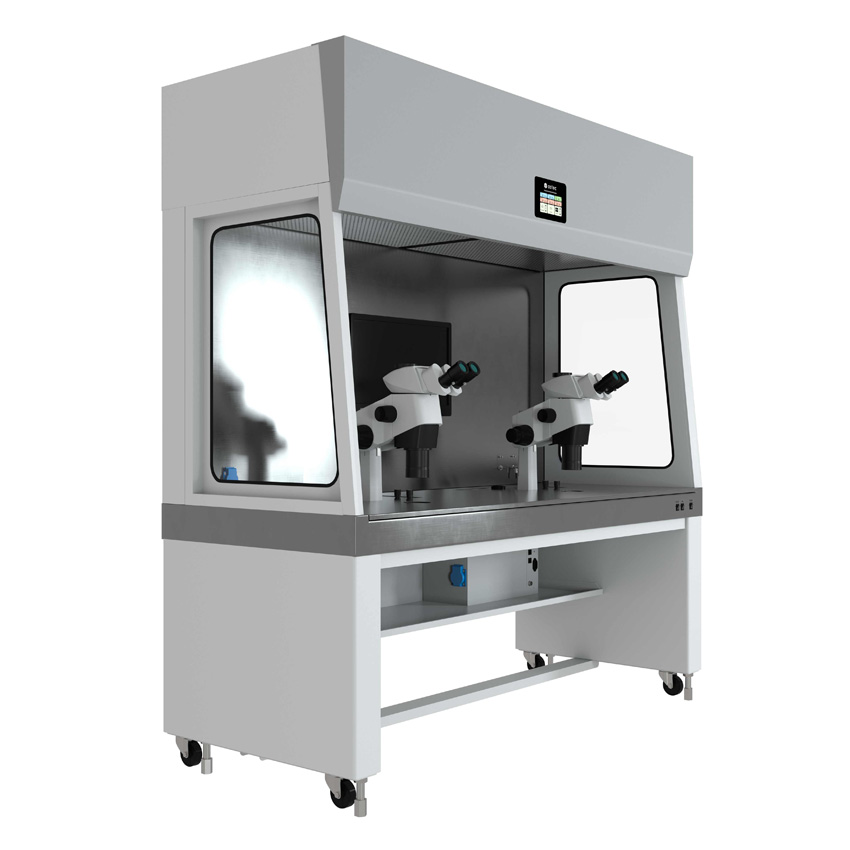

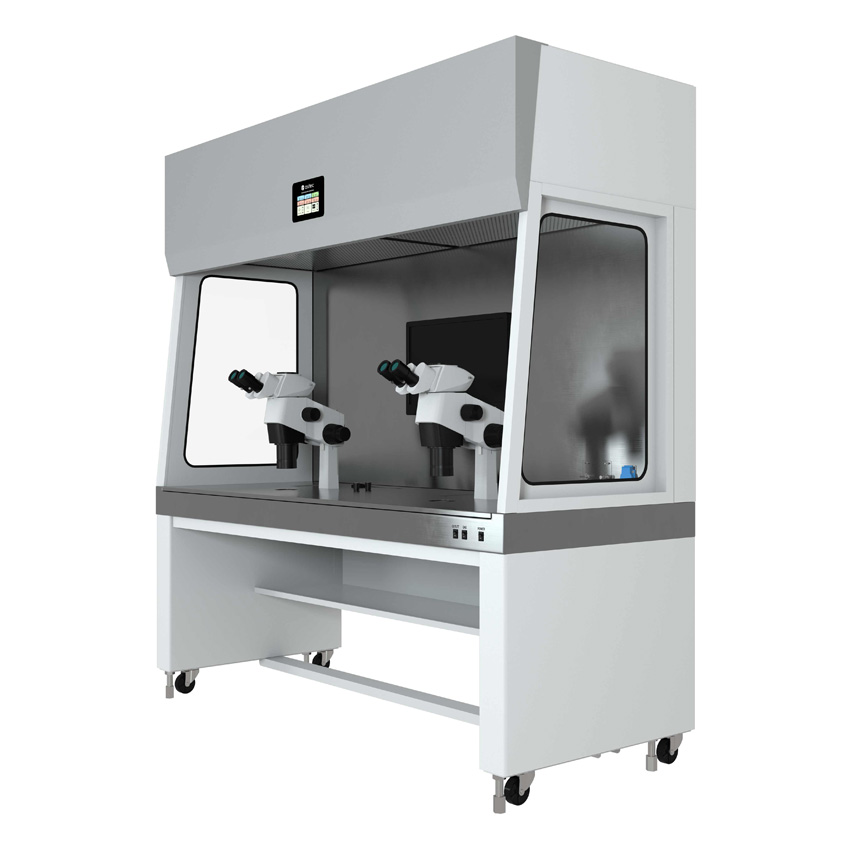

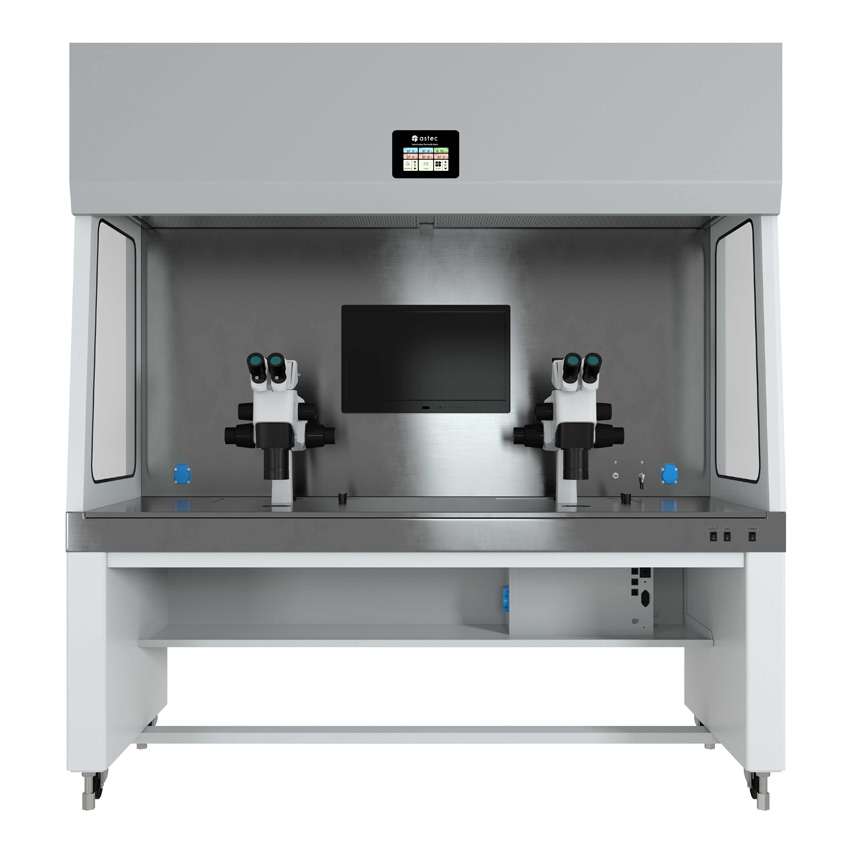

AITT-180L

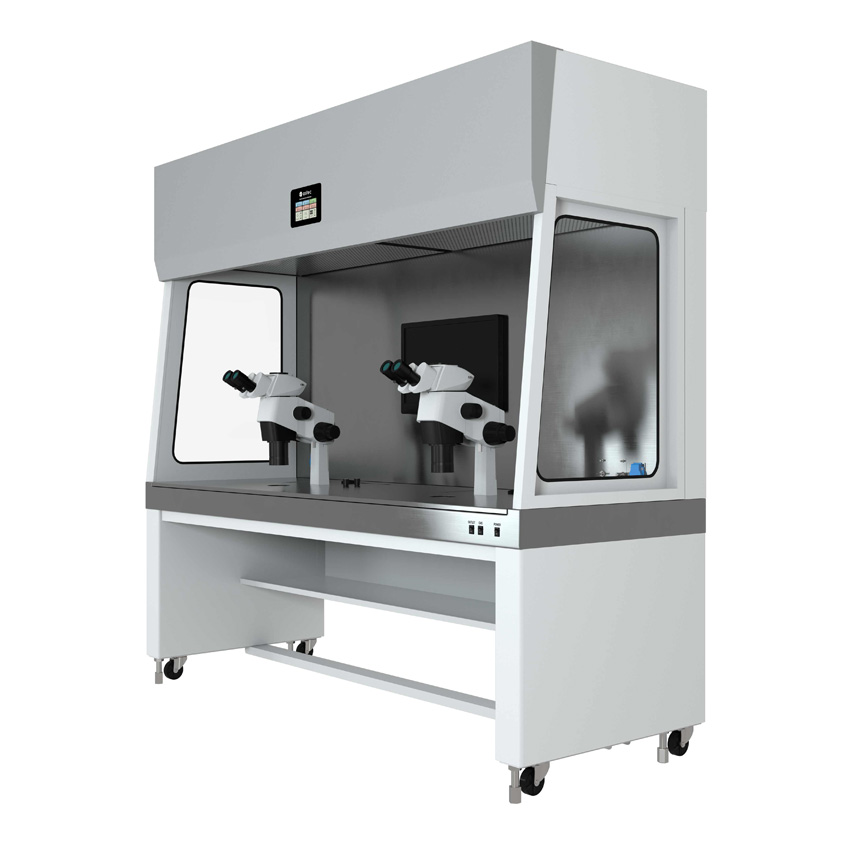

AITT-200L
| AIMT-180L | AIMT-200L | AITT-160L | AITT-180L | AITT-200L | |
|---|---|---|---|---|---|
| External dimensions (W*H*D) [mm] | 1,800 x 1,980 x 750 | 2,000 x 1,980 x 750 | 1,600 x 1,980 x 750 | 1,800 x 1,980 x 750 | 2,000 x 1,980 x 750 |
| Working surface [mm] | 1,700 x 645 | 1,900 x 645 | 1,500 x 645 | 1,700 x 645 | 1,900 x 645 |
| Light (LED) | 40W | 50W | 40W | 40W | 50W |
| Dawn lights | 15W×2 (Variable with 3 intensities) | ||||
| Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) | ||||
| Filter efficiency | 99.99％ or more (0.3μm particle size) | ||||
| Cleanliness | Class 100 | ||||
| Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub | ||||
| Working surface warmer | Variable between 30℃～40℃ | ||||
| Glass thermo plate | Variable between 30℃～40℃ | ||||
| Power consumption | 880W | 900W | 840W | 880W | 900W |
| Weight | 260kg | 280kg | 240kg | 260kg | 280kg |
* AIMT Series - Used with one (1) stereo microscope and one (1) inverted microscope
* AITT Series - Used with two (2) Stereo microscopes

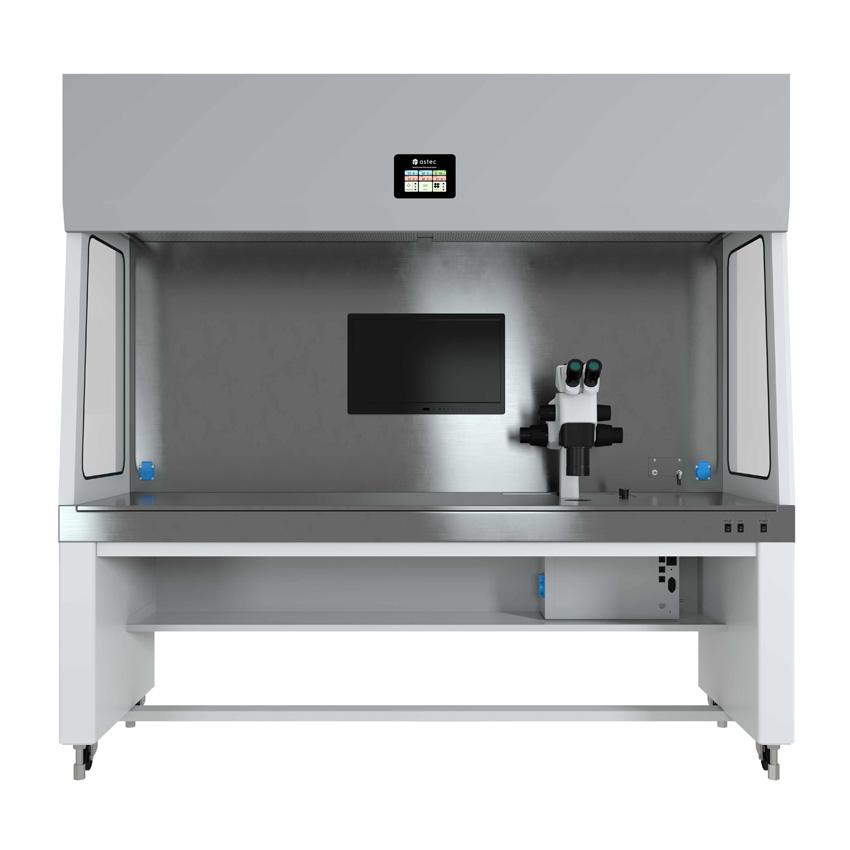

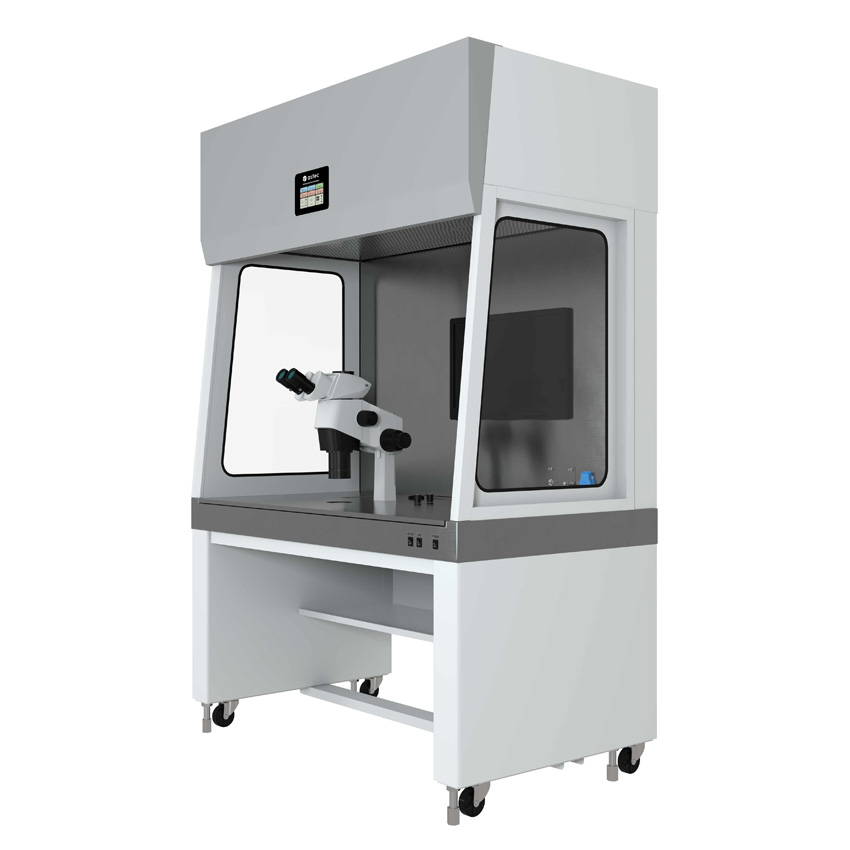

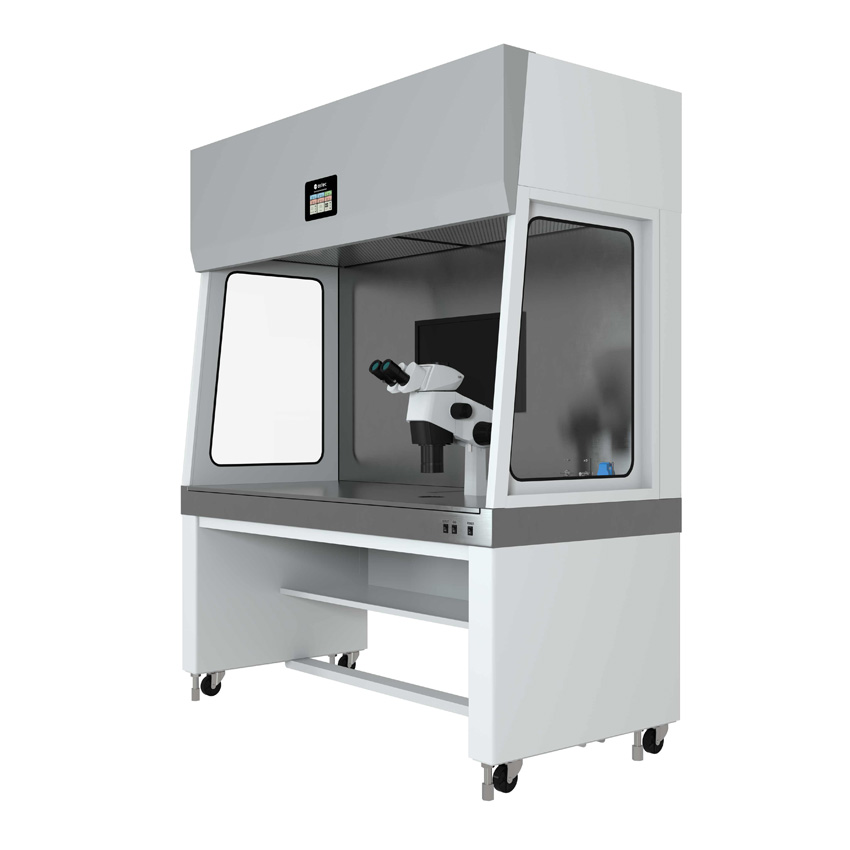

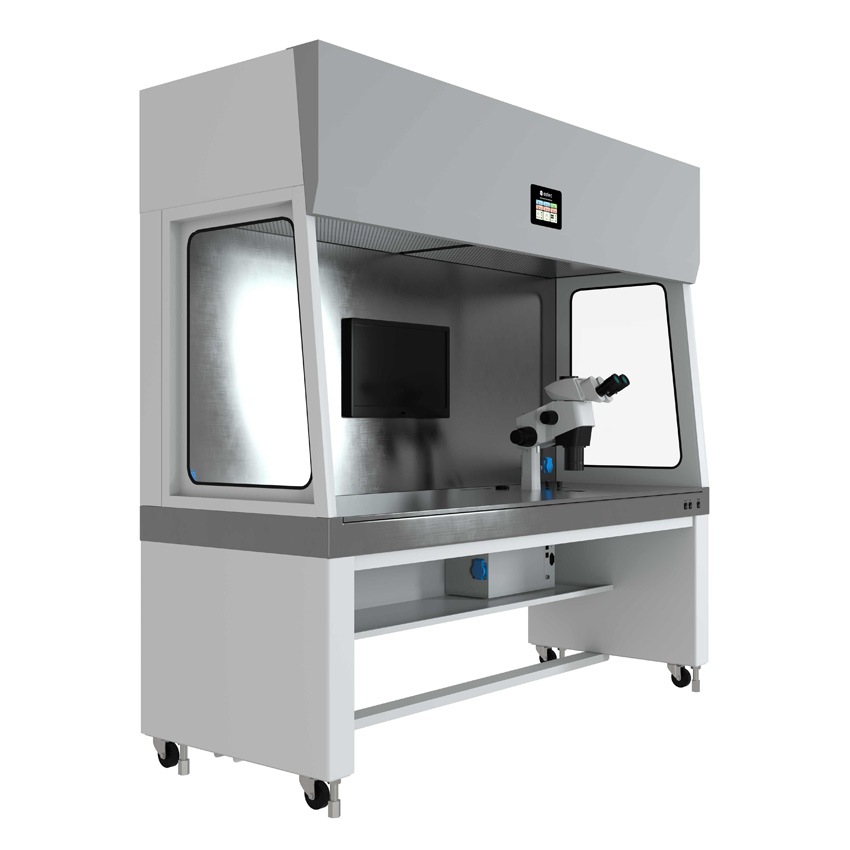

AT Series

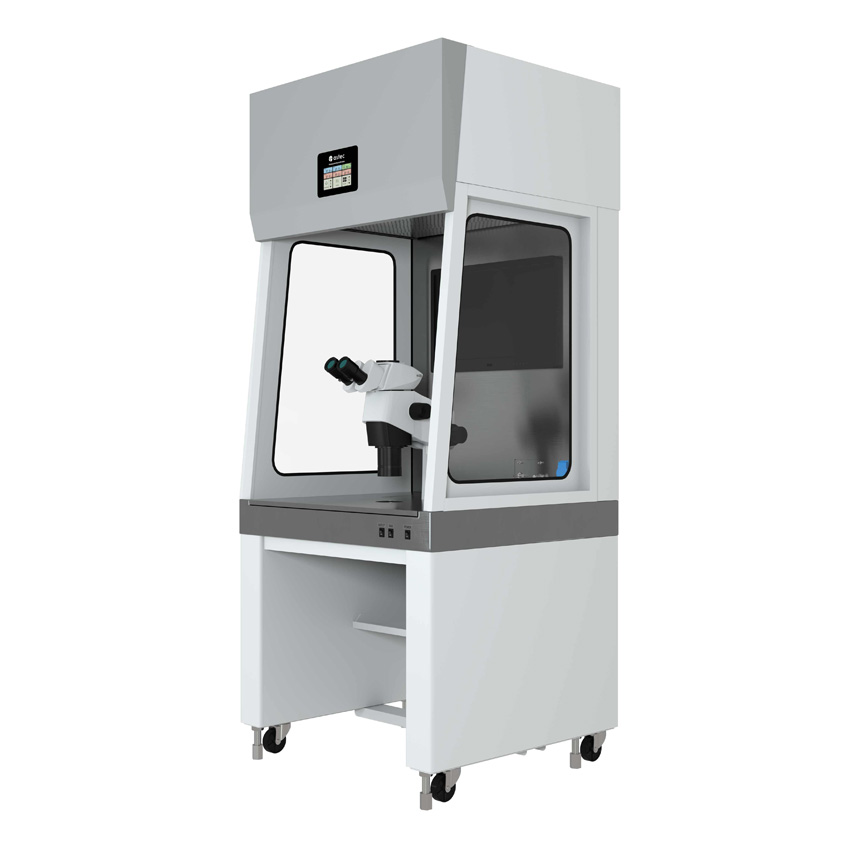

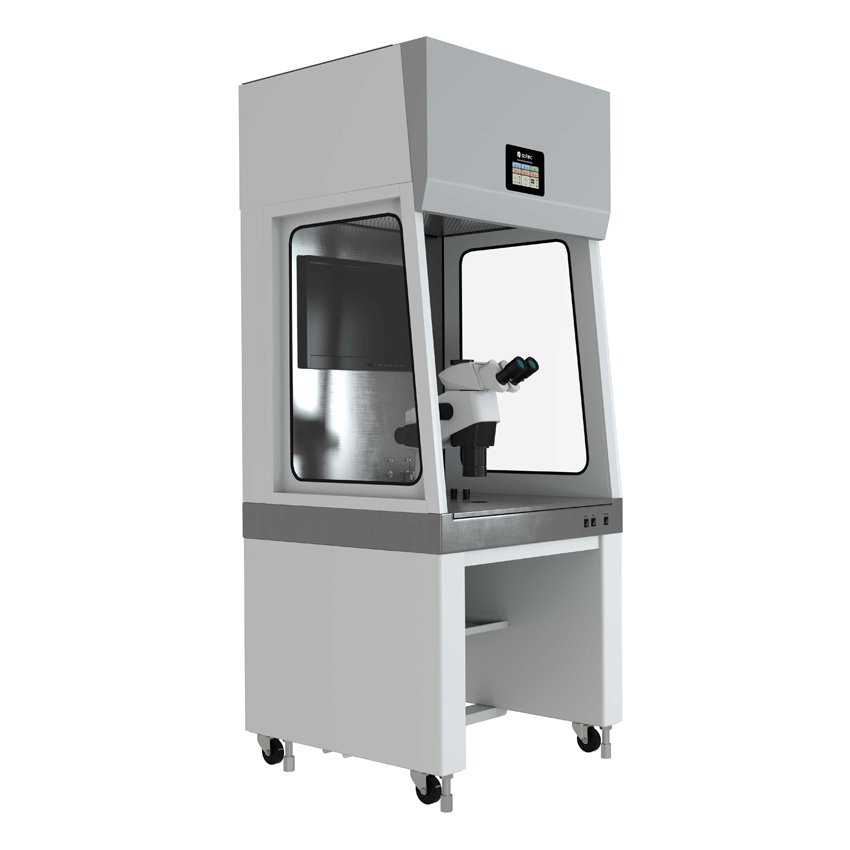

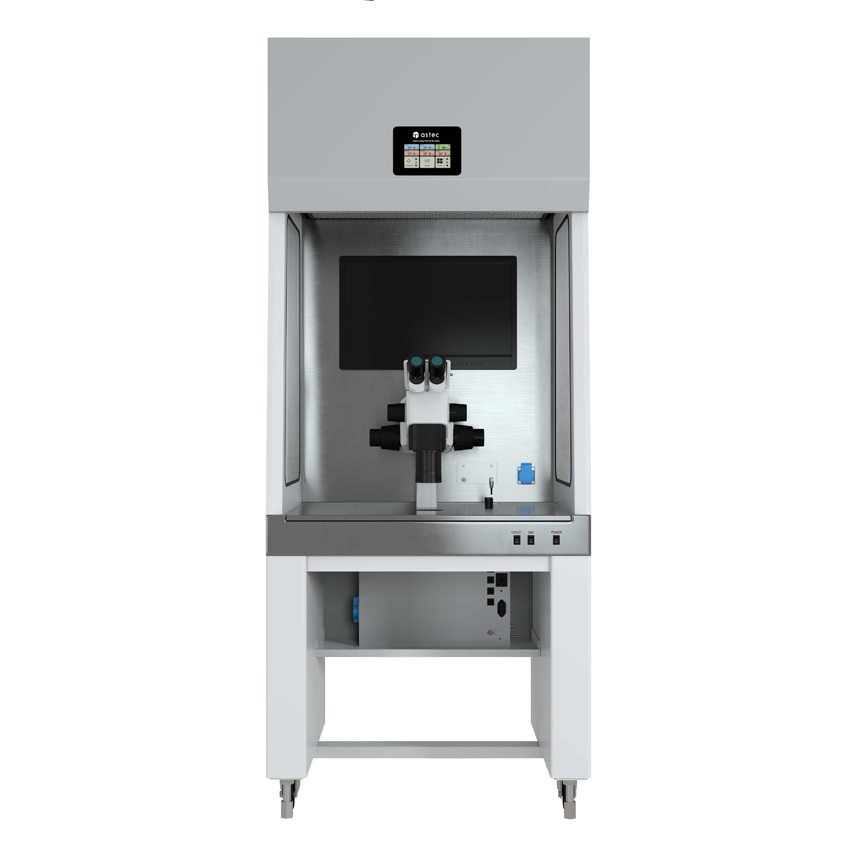

AT-80L

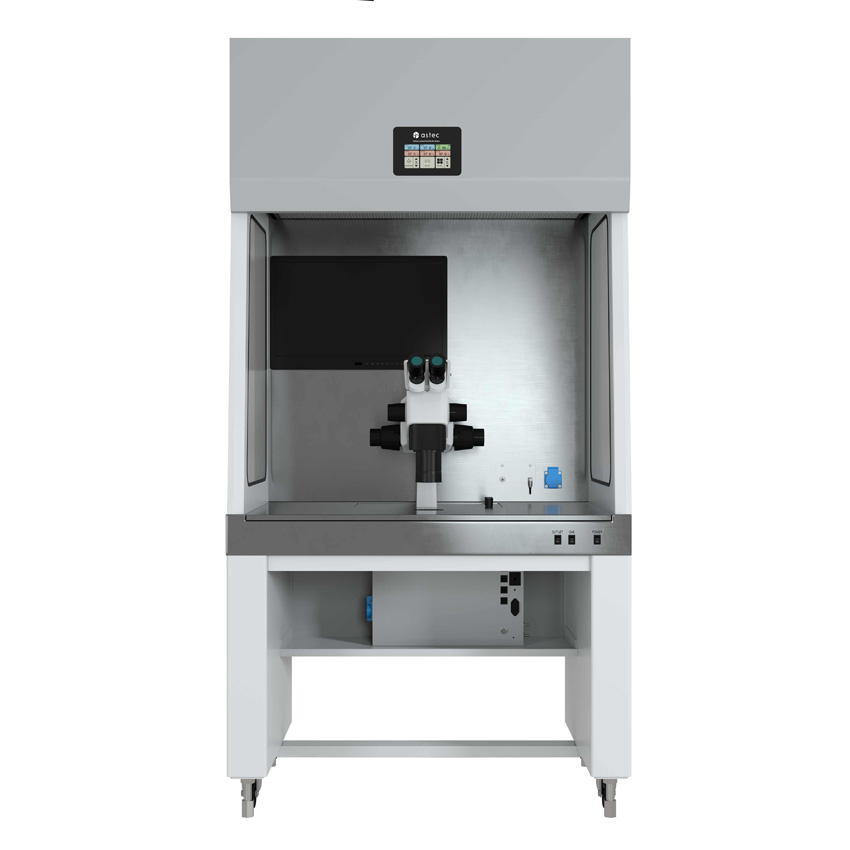

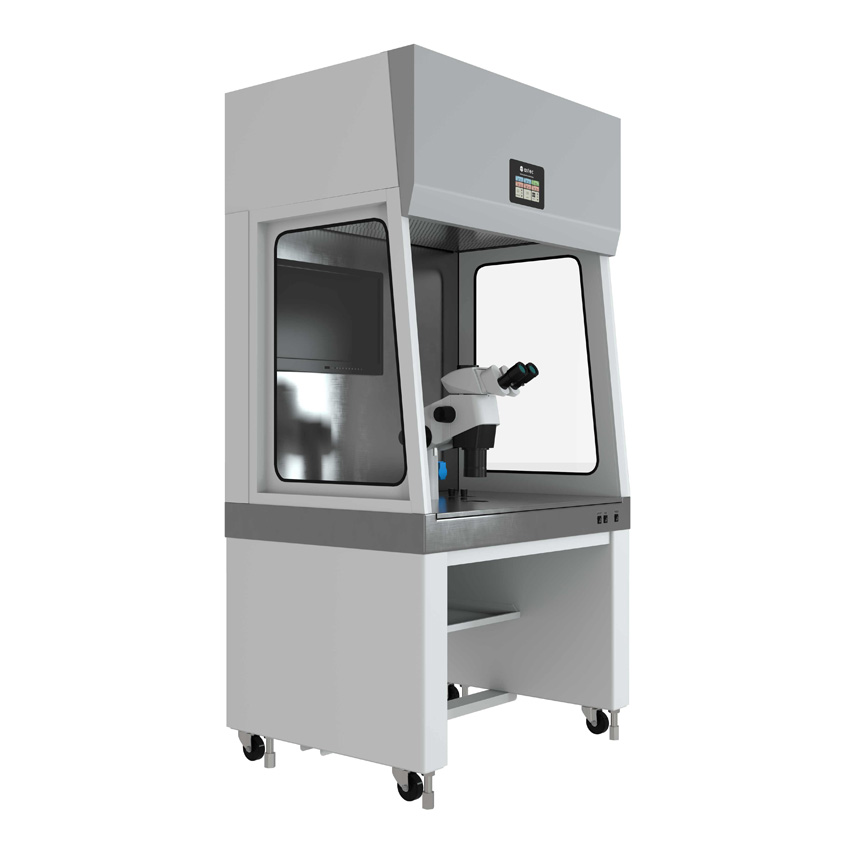

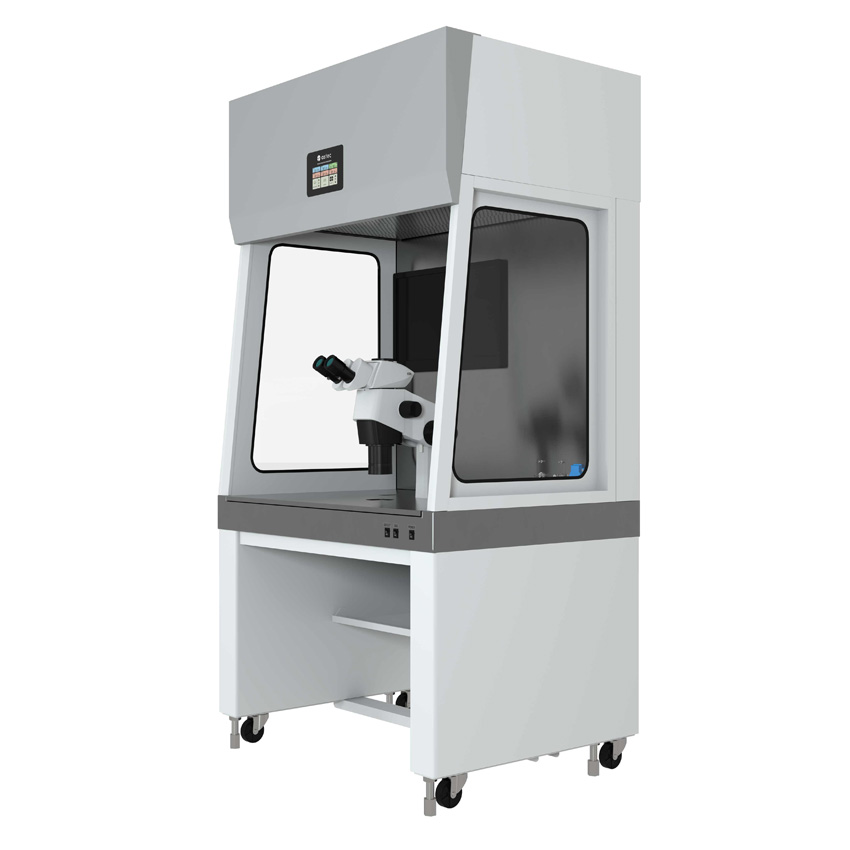

AT-100L

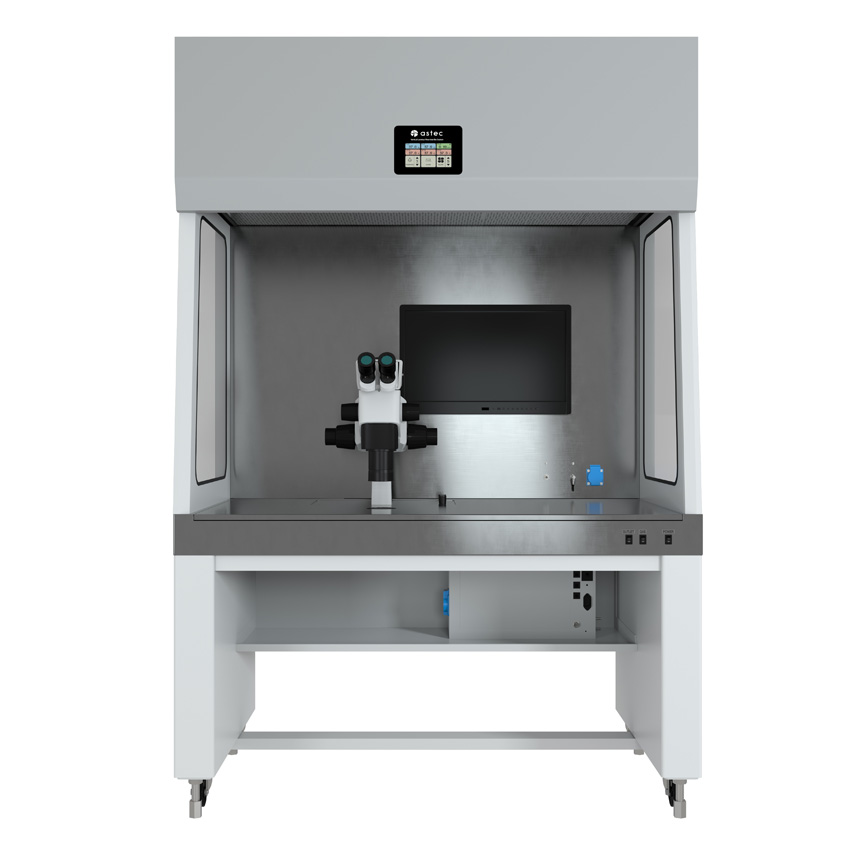

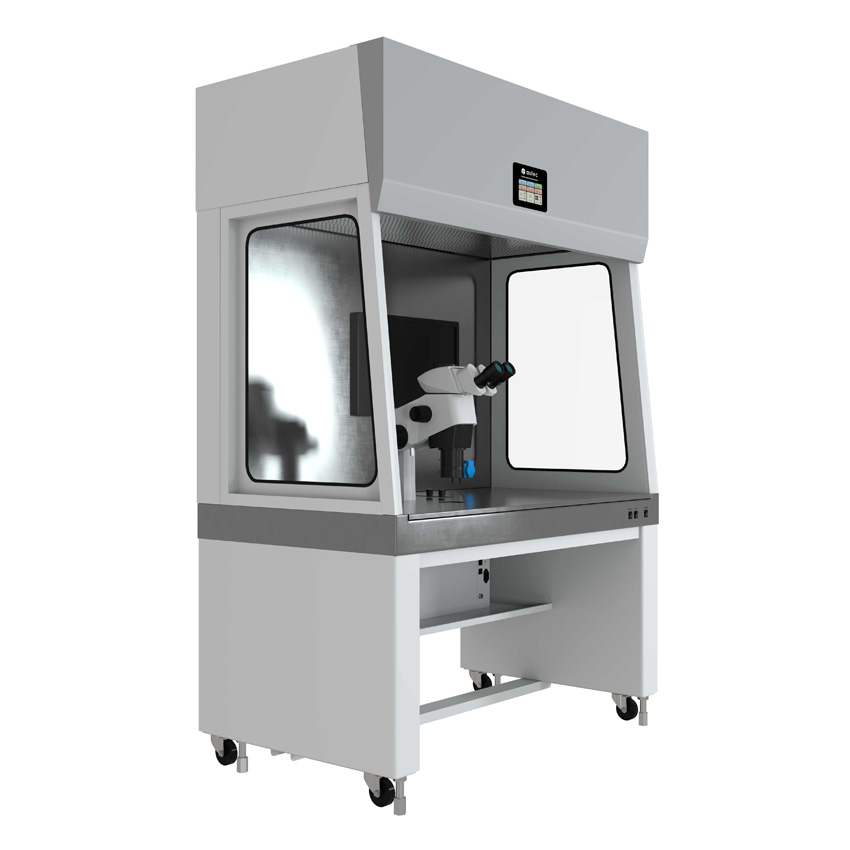

AT-130L

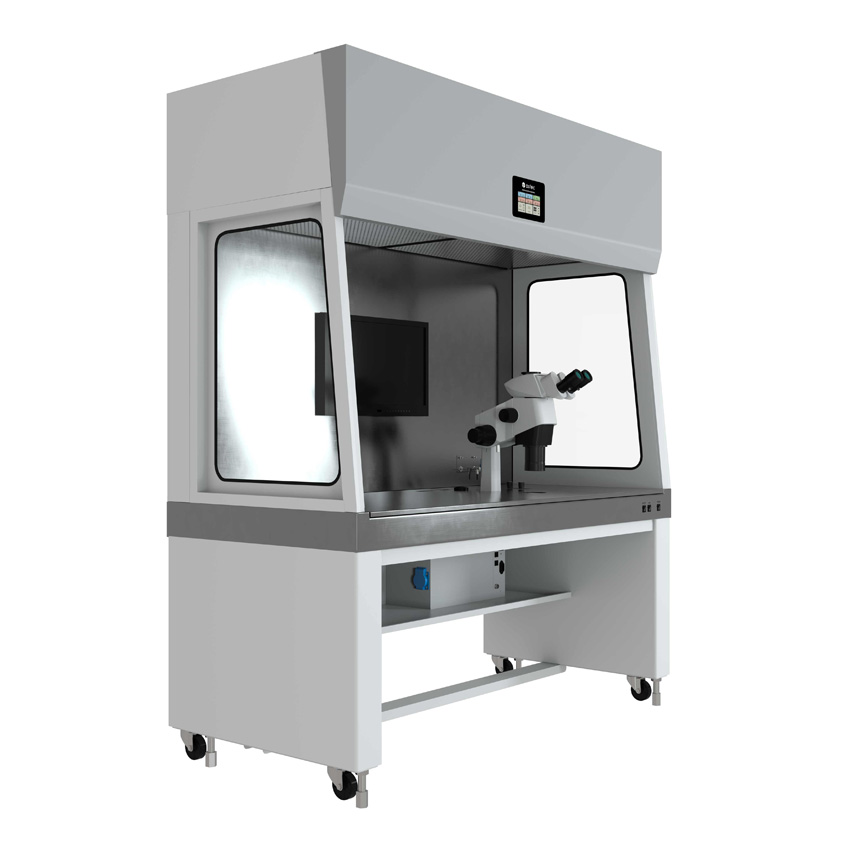

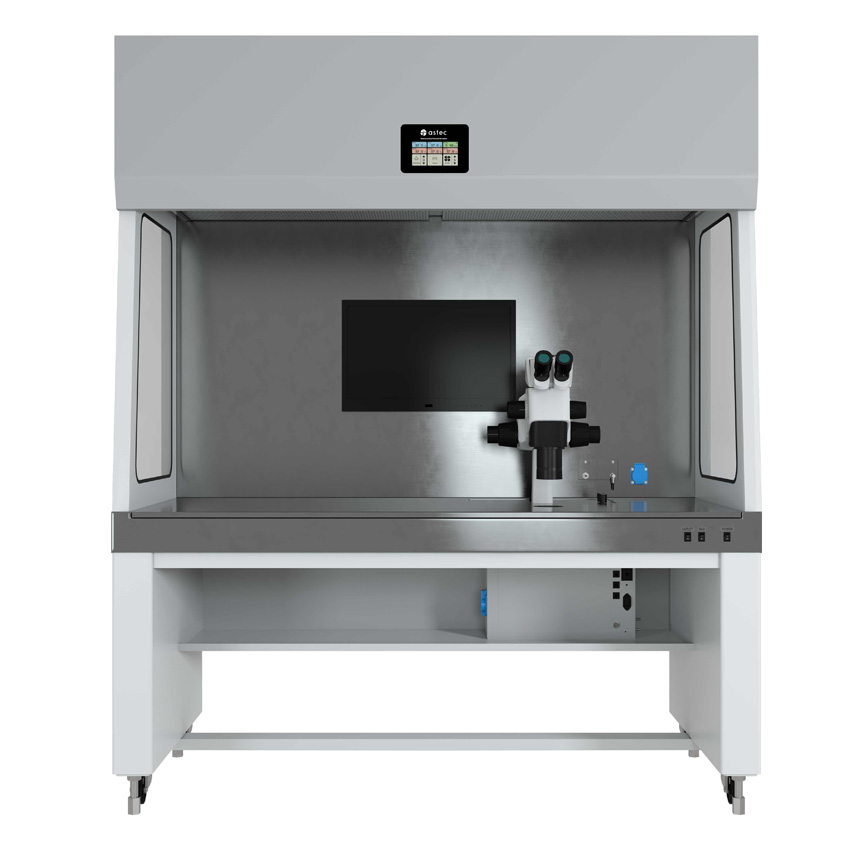

AT-160L

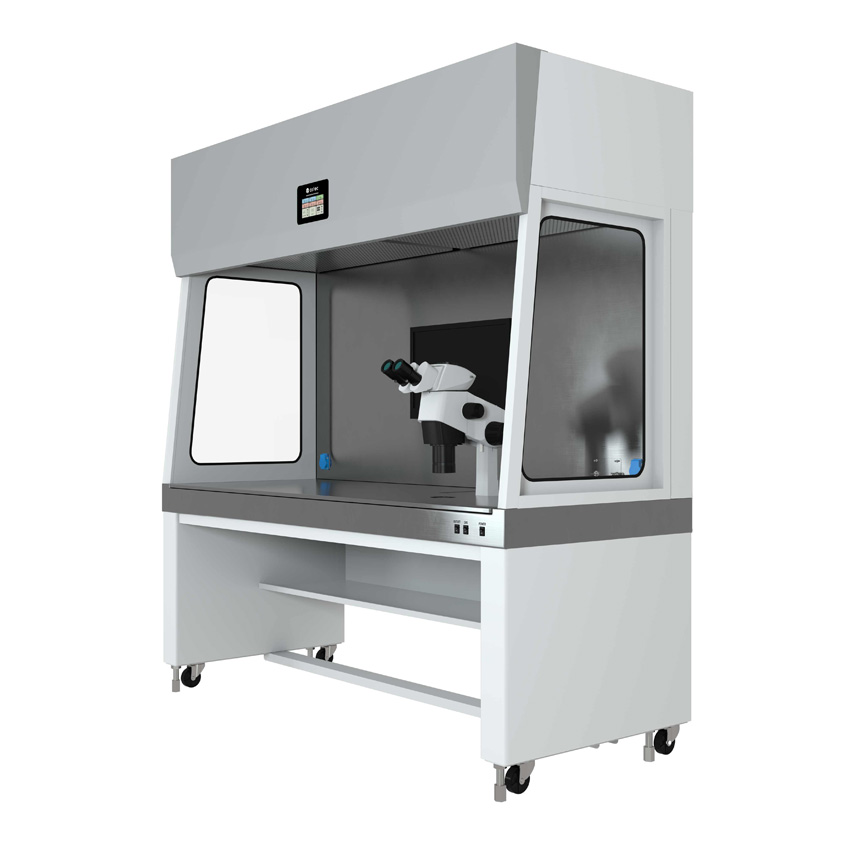

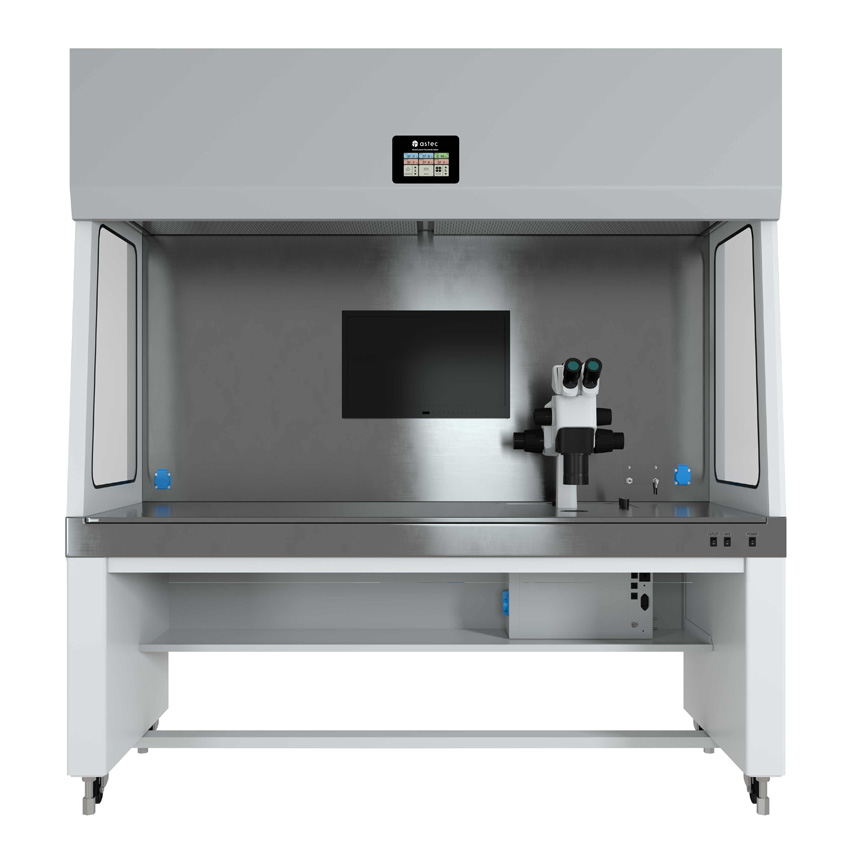

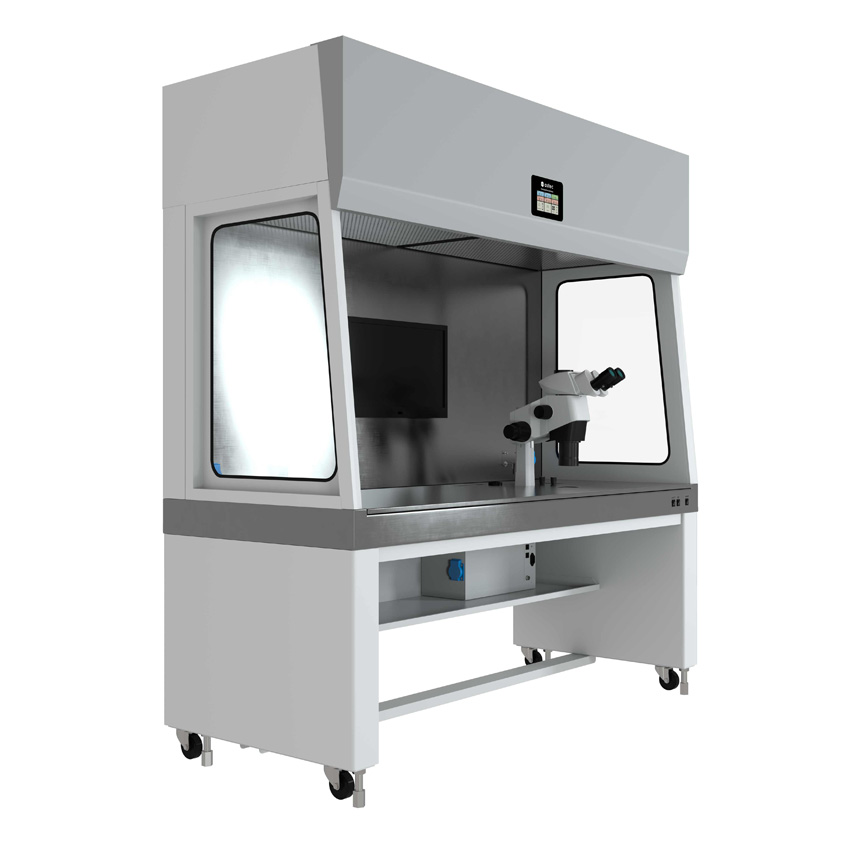

AT-180L

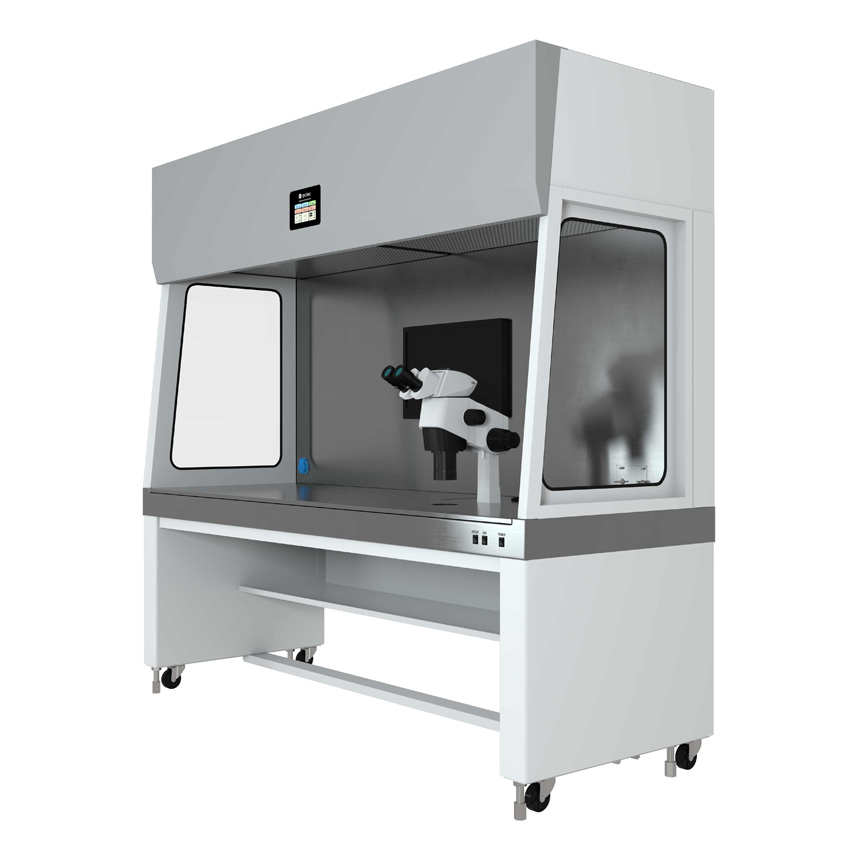

AT-200L
| AT-80L | AT-100L | AT-130L | AT-160L | AT-180L | AT-200L | |
|---|---|---|---|---|---|---|
| External dimensions (W*H*D) [mm] | 800 x 1,980 x 750 | 1,000 x 1,980 x 750 | 1,300 x 1,980 x 750 | 1,600 x 1,980 x 750 | 1,800 x 1,980 x 750 | 2,000 x 1,980 x 750 |
| Working surface [mm] | 700 x 645 | 900 x 645 | 1,200 x 645 | 1,500 x 645 | 1,700 x 645 | 1,900 x 645 |
| Light (LED) | 18W | 20W | 32W | 40W | 50W | |
| Dawn lights | 15W×2 (Variable with 3 intensities) | |||||
| Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) | |||||
| Filter efficiency | 99.99％ or more (0.3μm particle size) | |||||
| Cleanliness | Class 100 | |||||
| Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub | |||||
| Working surface warmer | Variable between 30℃～40℃ | |||||
| Glass thermo plate | Variable between 30℃～40℃ | |||||
| Power consumption | 490W | 560W | 800W | 840W | 880W | 900W |
| Weight | 155kg | 175kg | 210kg | 240kg | 260kg | 280kg |
* AT Series - Used with one (1) stereo microscope

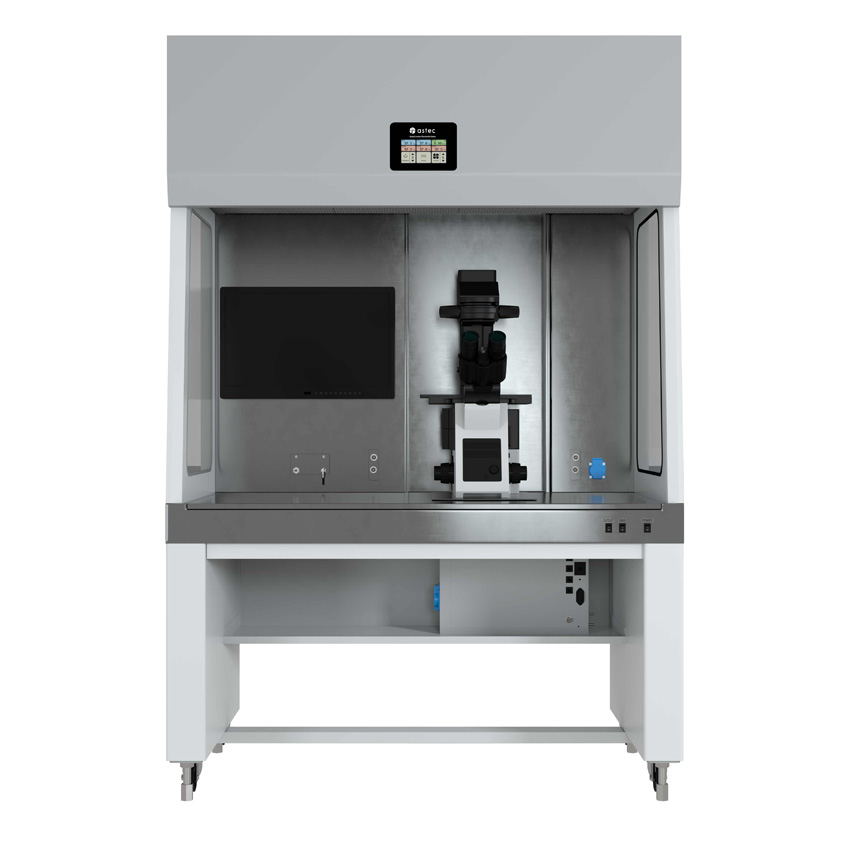

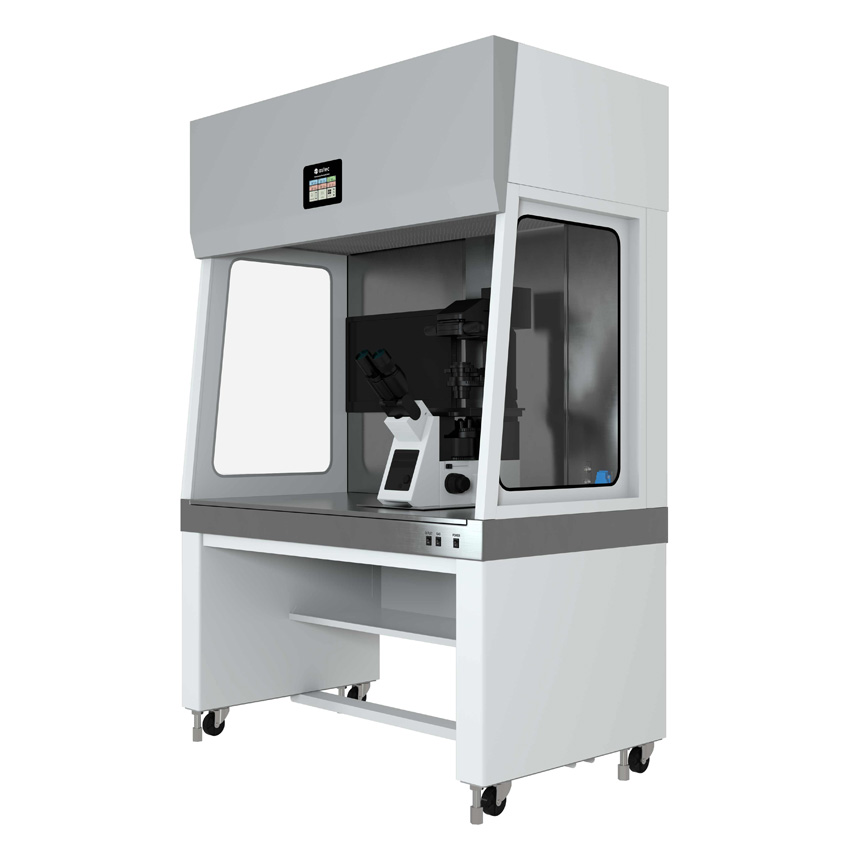

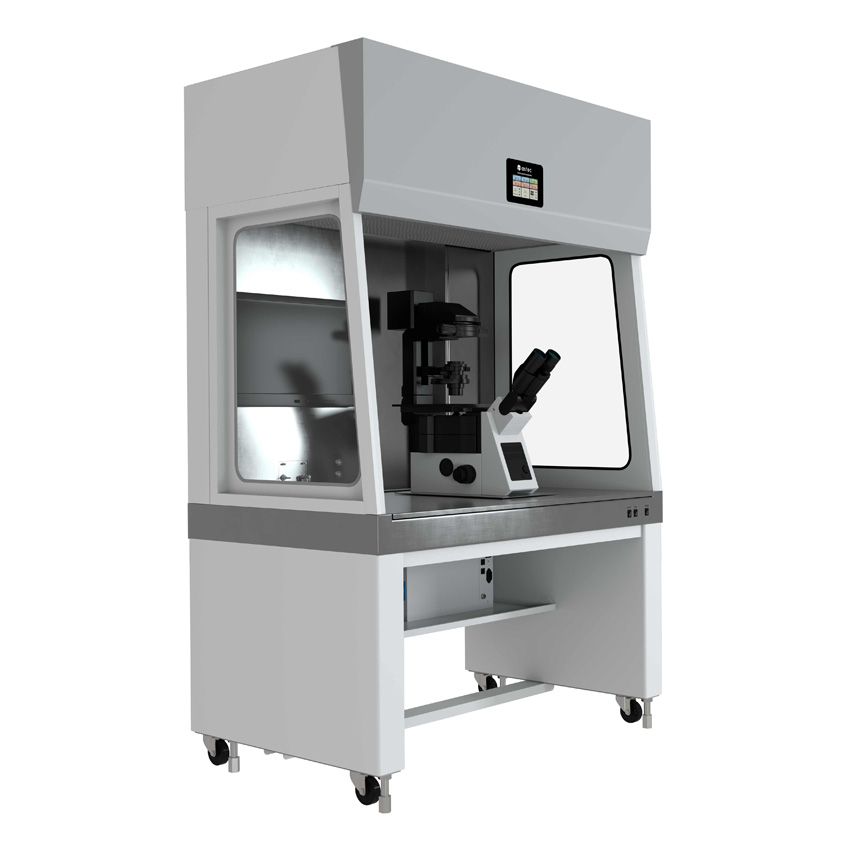

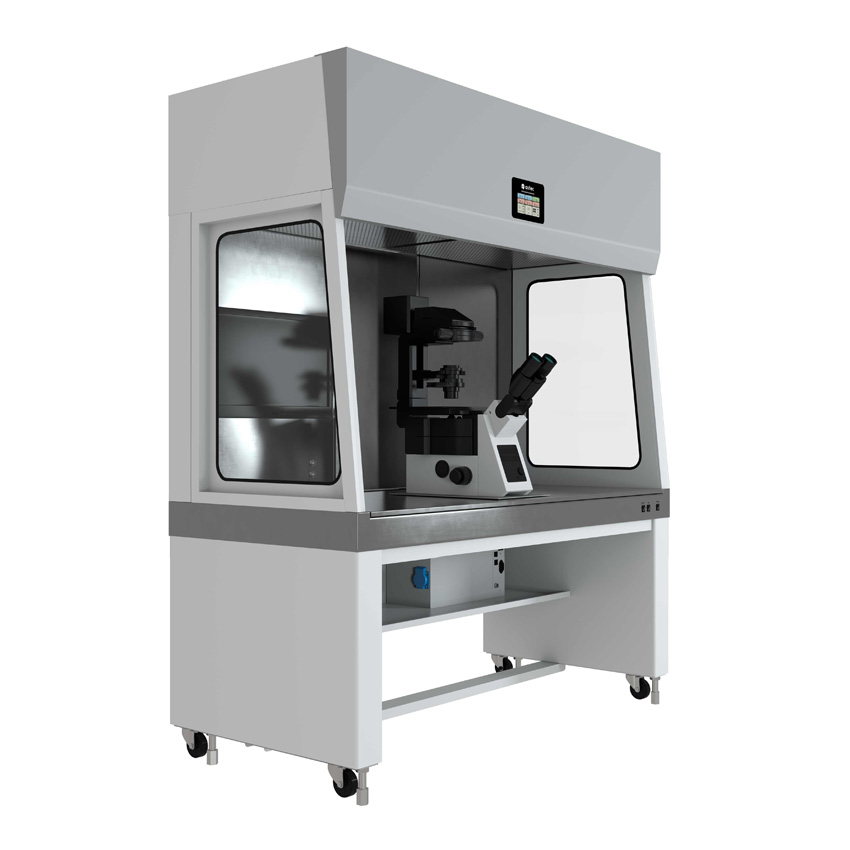

AIM Series
AIM-130L

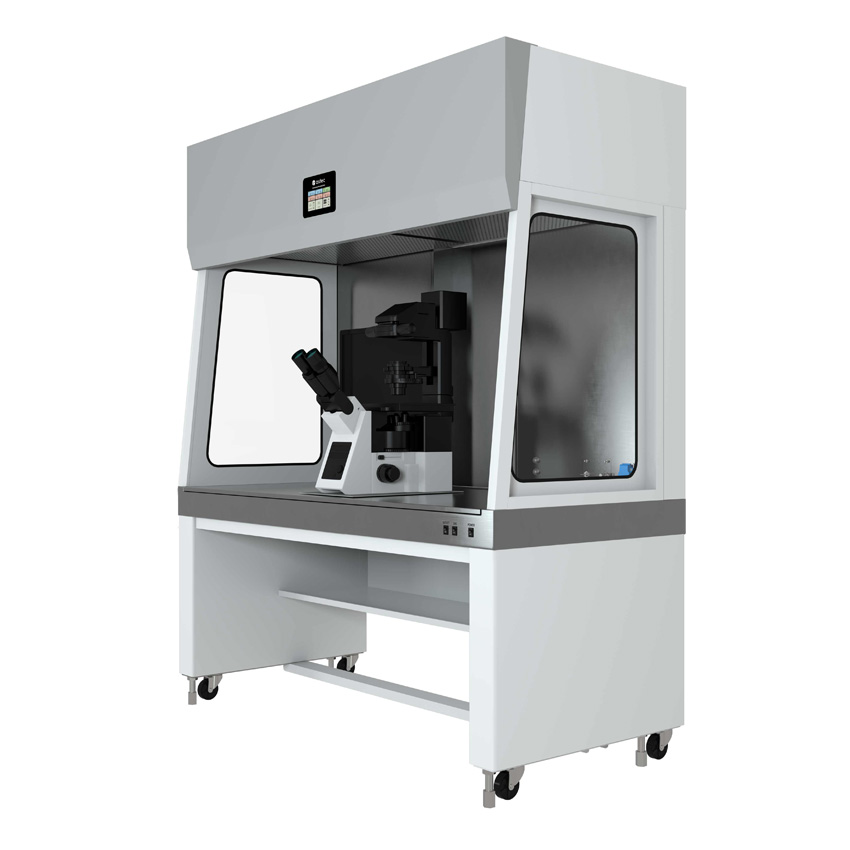

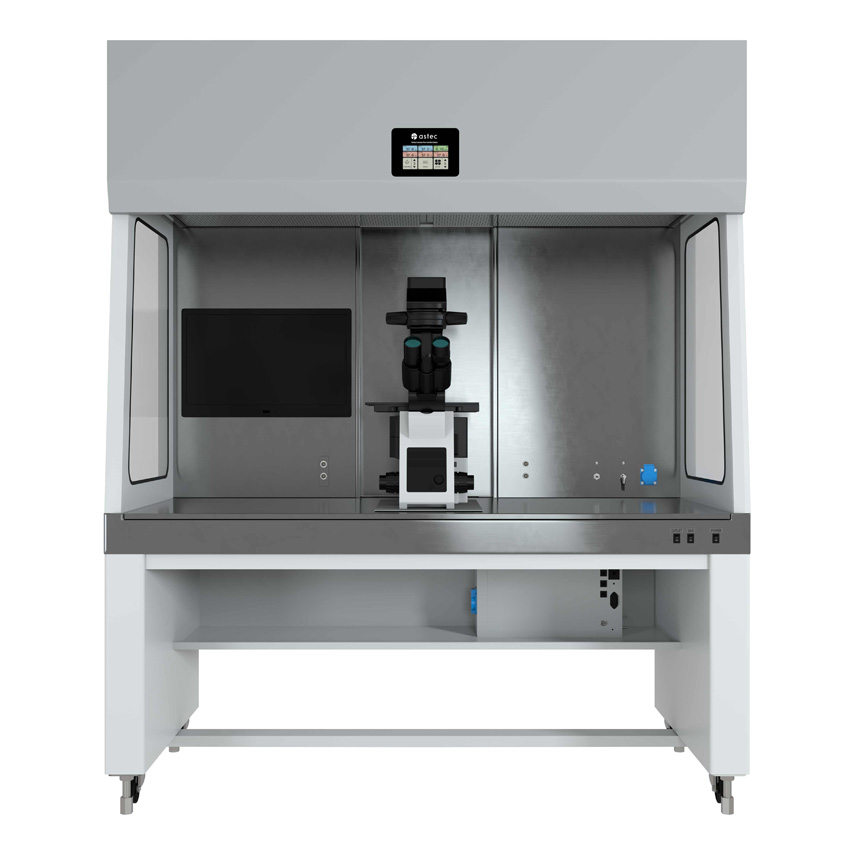

AIM-160L

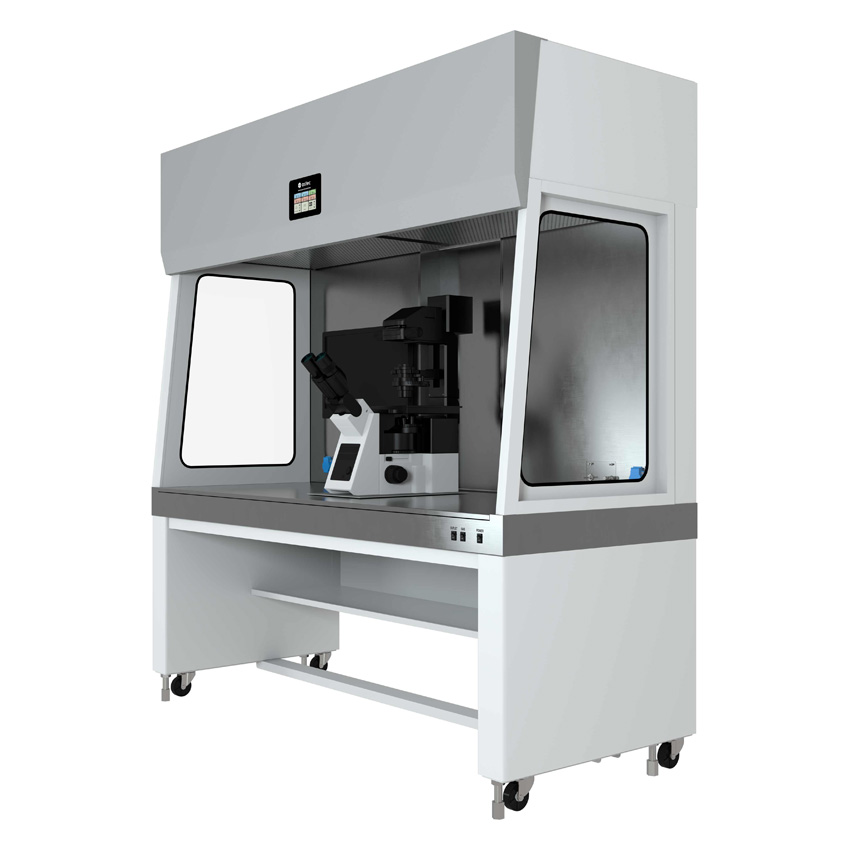

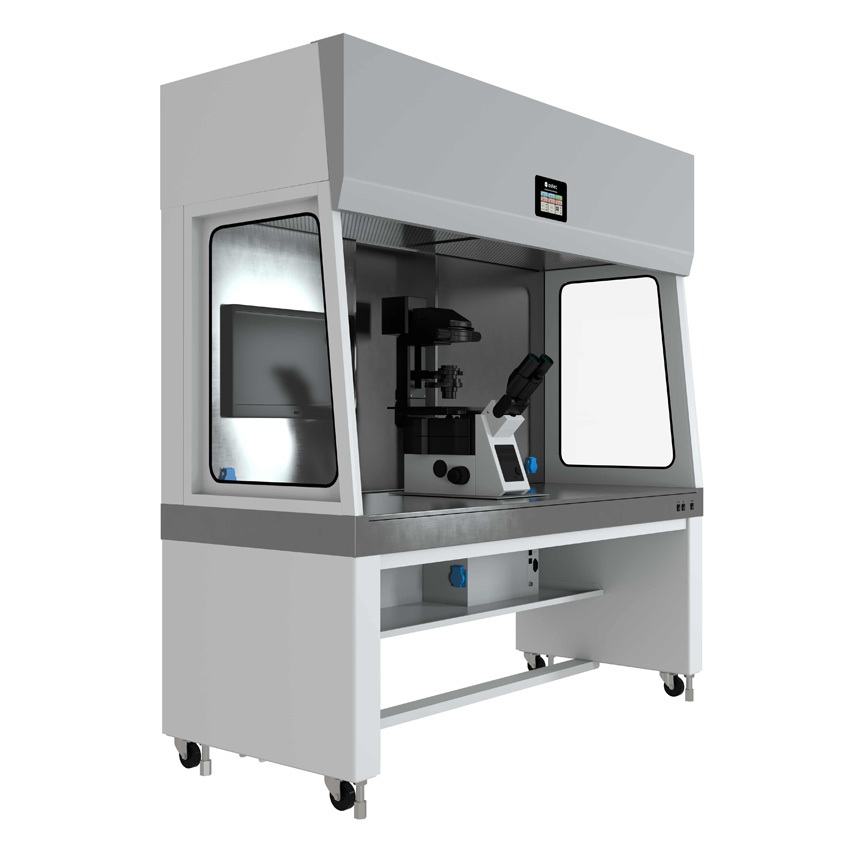

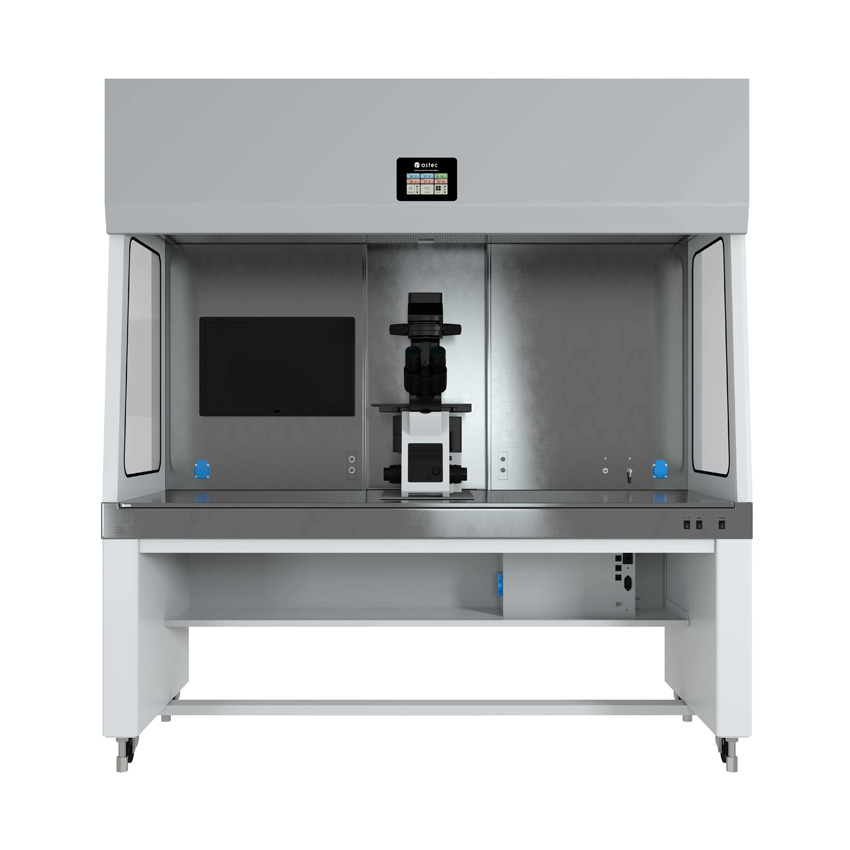

AIM-180L

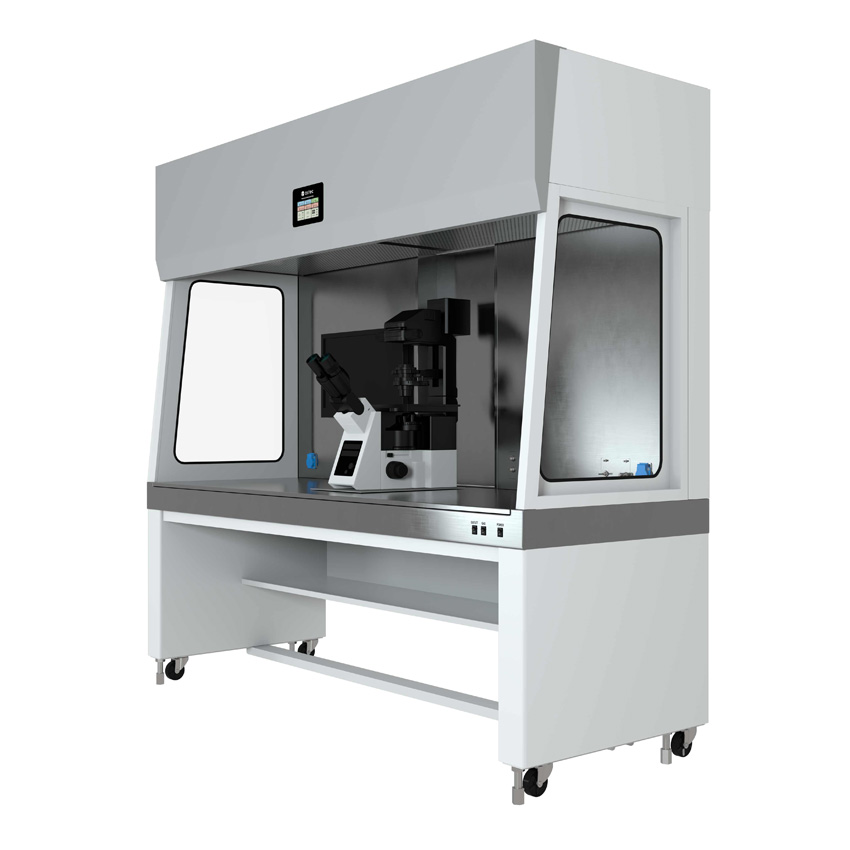

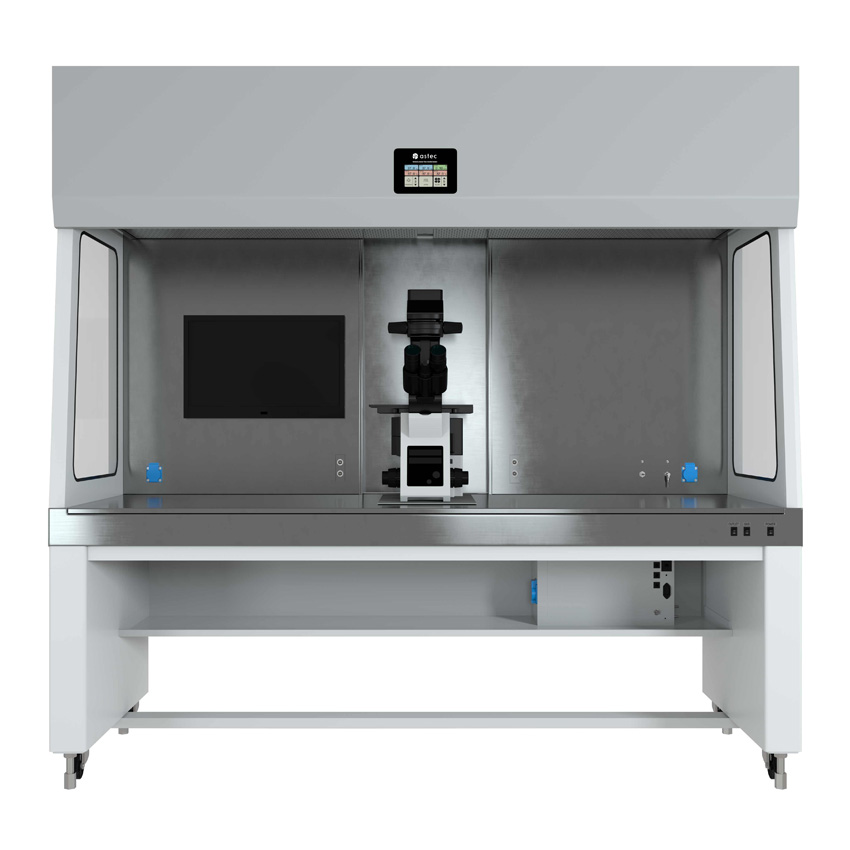

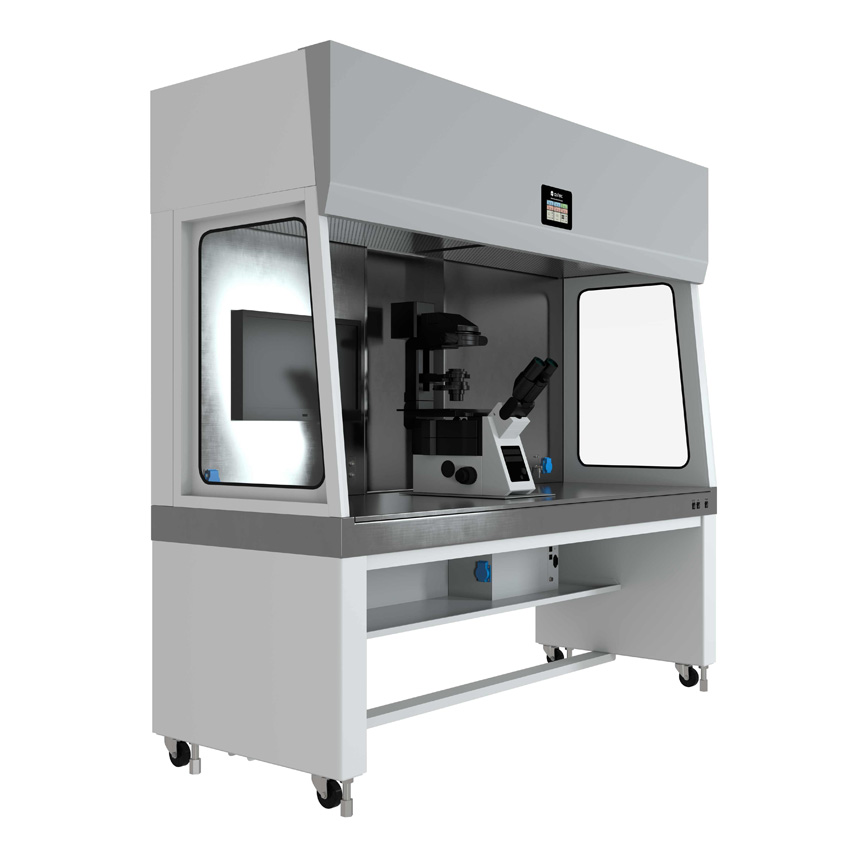

AIM-200L
| AIM-130L | AIM-160L | AIM-180L | AIM-200L | |
|---|---|---|---|---|
| External dimensions (W*H*D) [mm] | 1,300 x 1,980 x 750 | 1,600 x 1,980 x 750 | 1,800 x 1,980 x 750 | 2,000 x 1,980 x 750 |
| Working surface [mm] | 1,200 x 645 | 1,500 x 645 | 1,700 x 645 | 1,900 x 645 |
| Light (LED) | 32W | 40W | 50W | |
| Dawn lights | 15W×2 (Variable with 3 intensities) | |||
| Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) | |||
| Filter efficiency | 99.99％ or more (0.3μm particle size) | |||
| Cleanliness | Class 100 | |||
| Anti-Vibration | Passive anti-vibration ready for inverted microscope | |||
| Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub | |||
| Working surface warmer | Variable between 30℃～40℃ | |||
| Glass thermo plate | Variable between 30℃～40℃ | |||
| Power consumption | 800W | 840W | 880W | 900W |
| Weight | 210kg | 240kg | 260kg | 280kg |
* AIM Series / Used with one (1) inverted microscope
